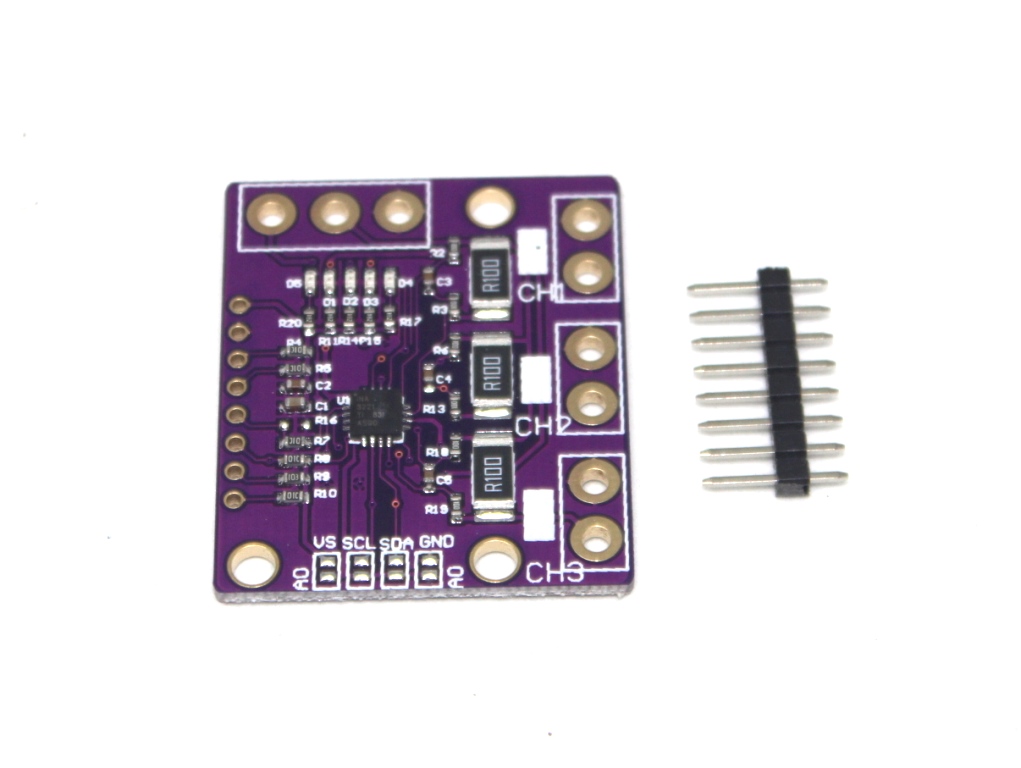

MCU-3221 INA3221 3 channel low/high side current and power monitor module

https://www.hub360.cc/web/image/product.template/11103/image_1920?unique=80a7f96
(0 review)

₦ 12,300.00 12300.0 NGN ₦ 12,300.00

₦ 12,300.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.

Contact Us
Description: The MCU-3221 INA3221 module is designed for precise monitoring of current and power across three channels. It can measure both low-side and high-side current, providing accurate readings for power management and monitoring applications. This module features high precision, low power consumption, and easy interfacing with microcontrollers. Key Features:
  • Monitors current and power on three separate channels
  • Measures both low-side and high-side current
  • High accuracy and resolution
  • Easy interfacing with microcontrollers via I2C
  • Low power consumption
Technical Specifications:
  • Number of Channels: 3
  • Measurement Range: ±320 mV (for shunt voltage)
  • Current Range: ±40A (depending on shunt resistor value)
  • Power Supply Voltage: 3V to 5V
  • Communication Interface: I2C
  • Resolution: 12-bit
  • Operating Temperature Range: -40°C to +125°C
  • Dimensions: 35 x 25 x 10 mm
  • Weight: 15 g
Applications:
  • Power management systems
  • Battery monitoring
  • Load current monitoring
  • Energy consumption measurement
  • DIY electronics projects
Datasheet: For detailed technical information, refer to the MCU-3221 INA3221 Datasheet.
