Description:

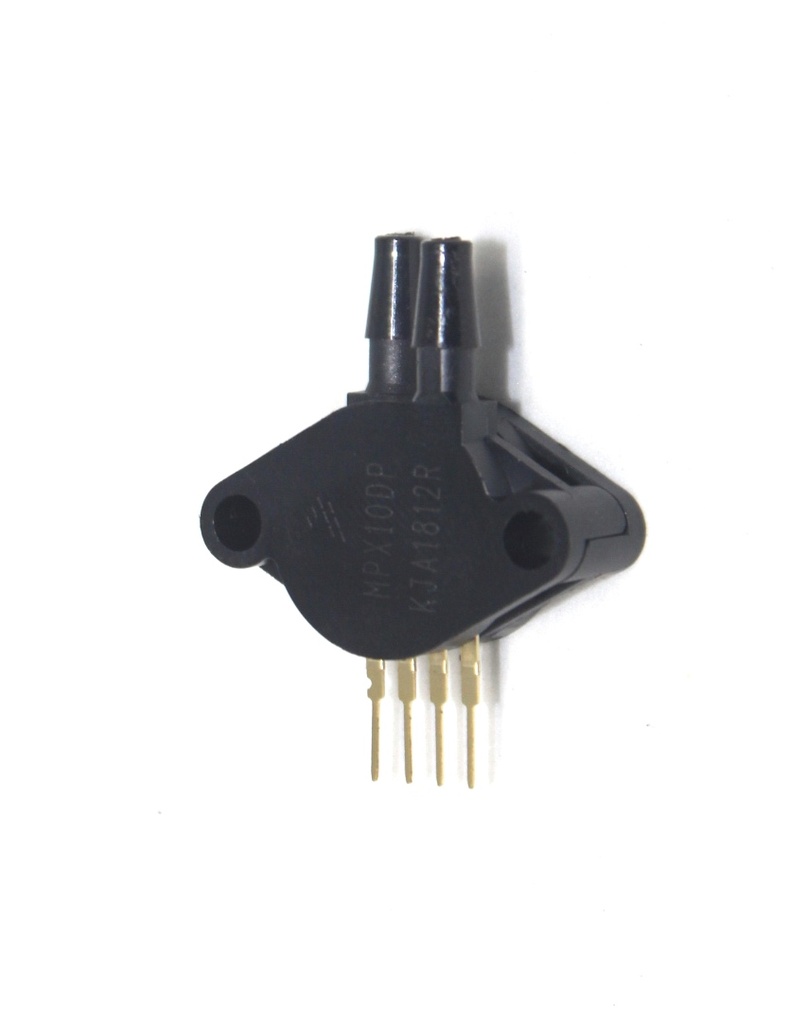

The MPX10DP is a high-performance pressure sensor designed to measure differential pressure. It provides precise pressure readings in various applications, including automotive, industrial, and medical systems. The sensor is known for its high accuracy and reliability.
Key Features:
Pressure Type: Differential pressure measurement.
Output Voltage: Analog voltage output proportional to the pressure.
High Accuracy: Provides precise pressure measurements.
Compact Design: Suitable for integration into various systems.
Temperature Compensation: Ensures stable performance across a wide temperature range.
Low Power Consumption: Ideal for battery-powered applications.
Technical Specifications:
Pressure Range: 0 to 10 kPa differential pressure
Output Voltage: Typically 0.2V to 4.7V (dependent on pressure range)
Operating Voltage: 5V DC
Accuracy: ±1.5% full-scale span (typical)
Temperature Range: -40°C to +125°C
Response Time: Fast response for dynamic pressure changes
Dimensions: Compact size for easy integration
Applications:
Automotive: Used in automotive applications for measuring intake manifold pressure and other differential pressures.
Industrial: Suitable for industrial process monitoring and control.
Medical: Applied in medical devices for accurate pressure measurement in respiratory and other medical systems.
HVAC: Used in heating, ventilation, and air conditioning systems to monitor pressure levels.
