Description

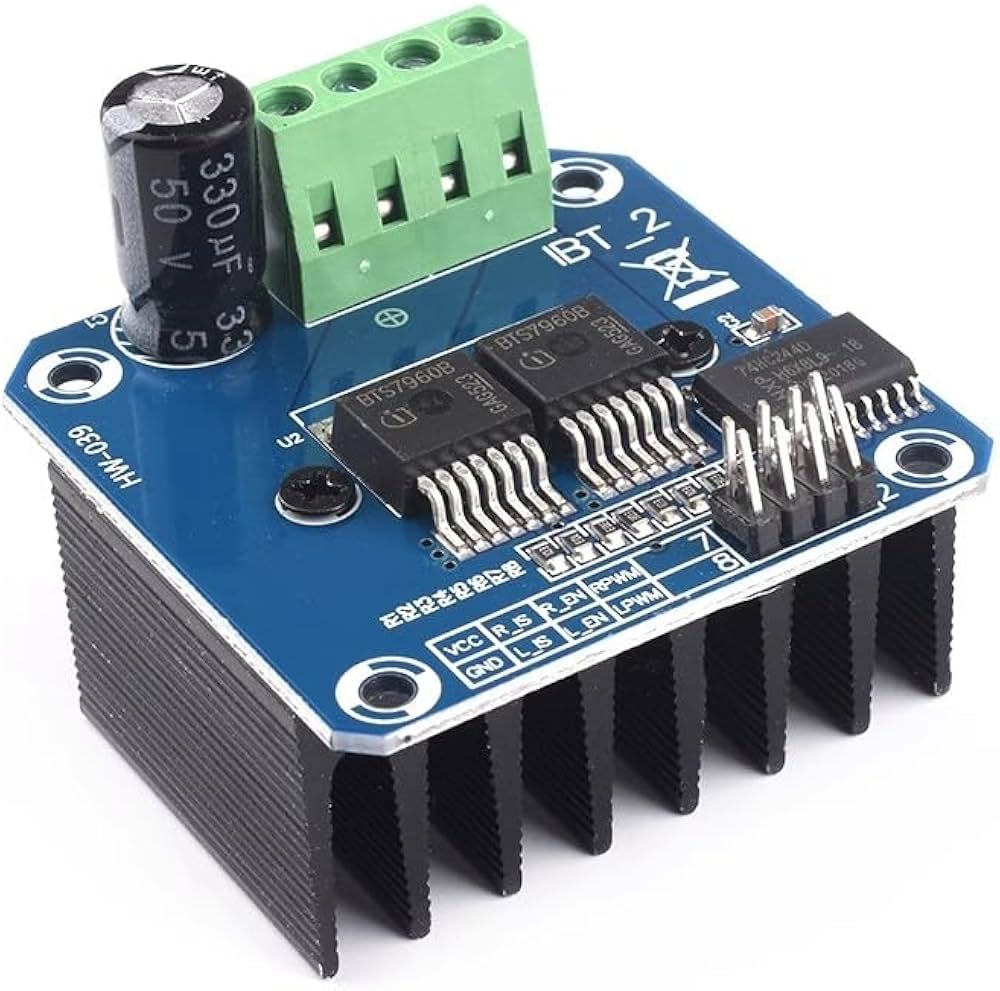

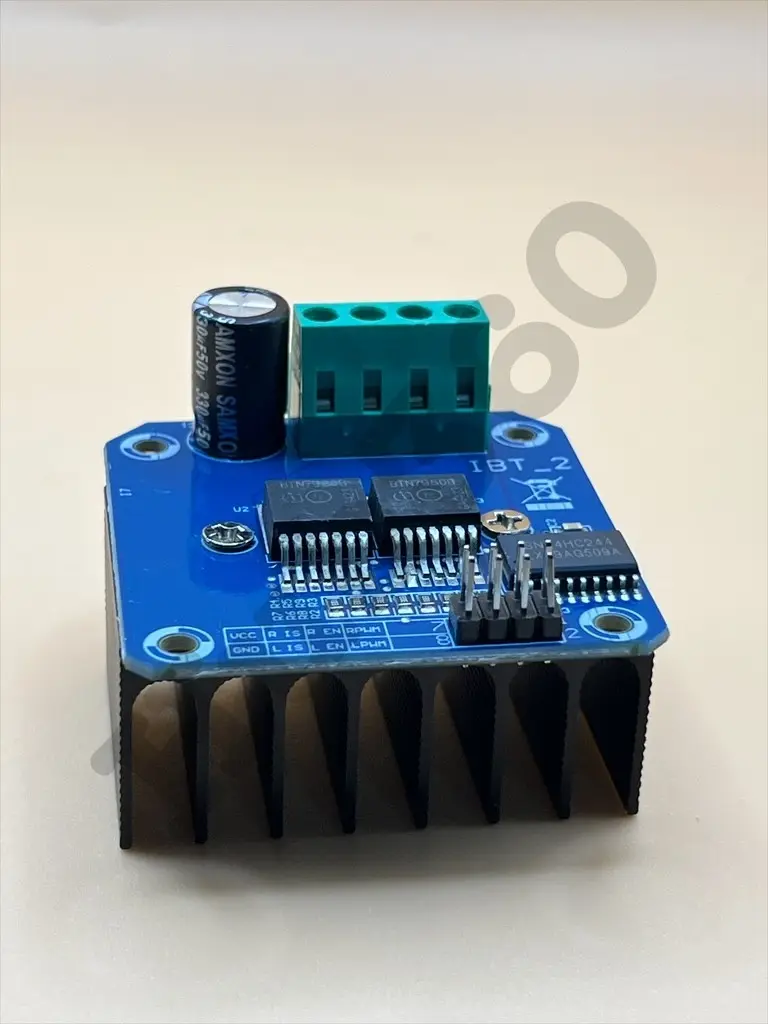

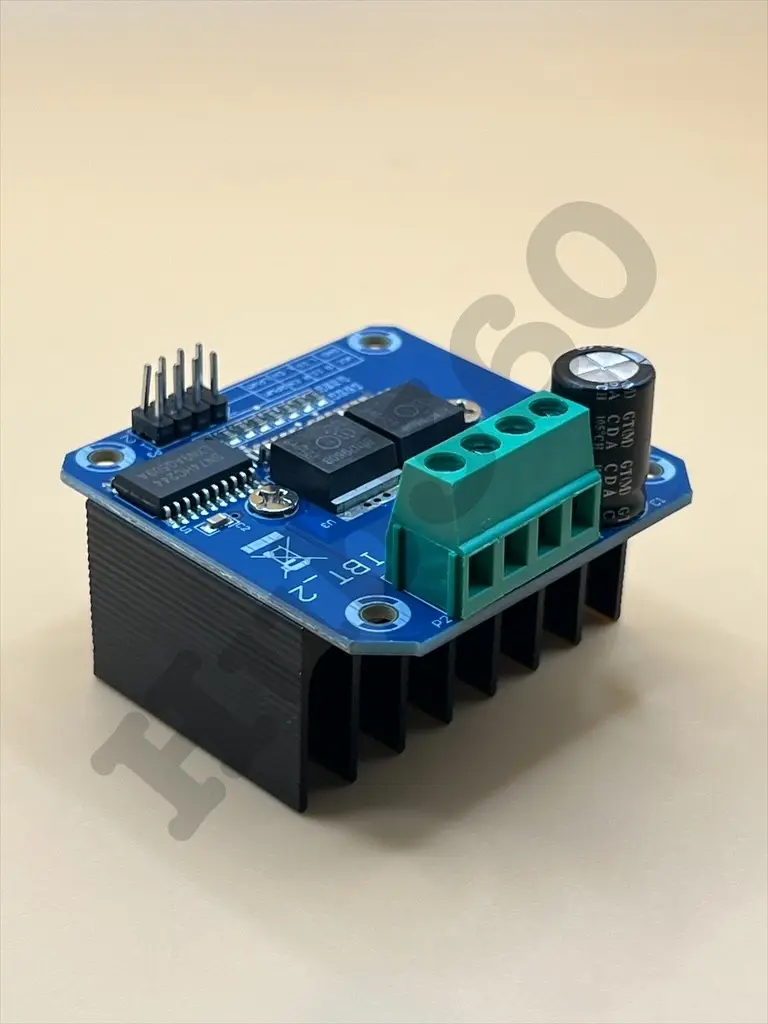

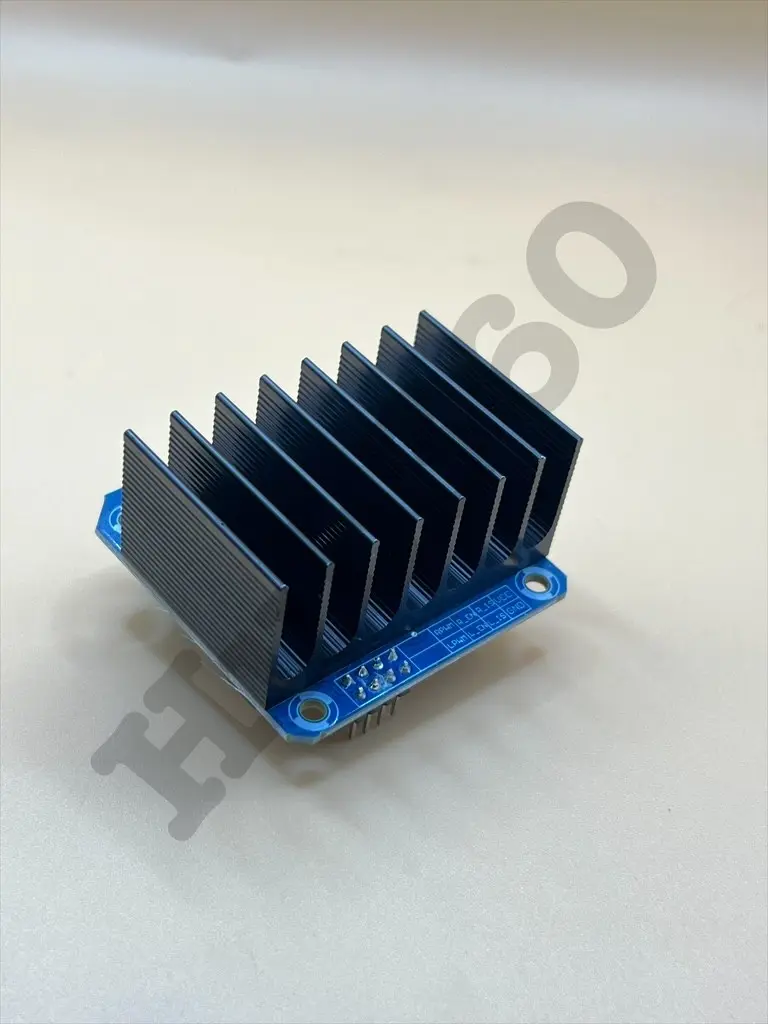

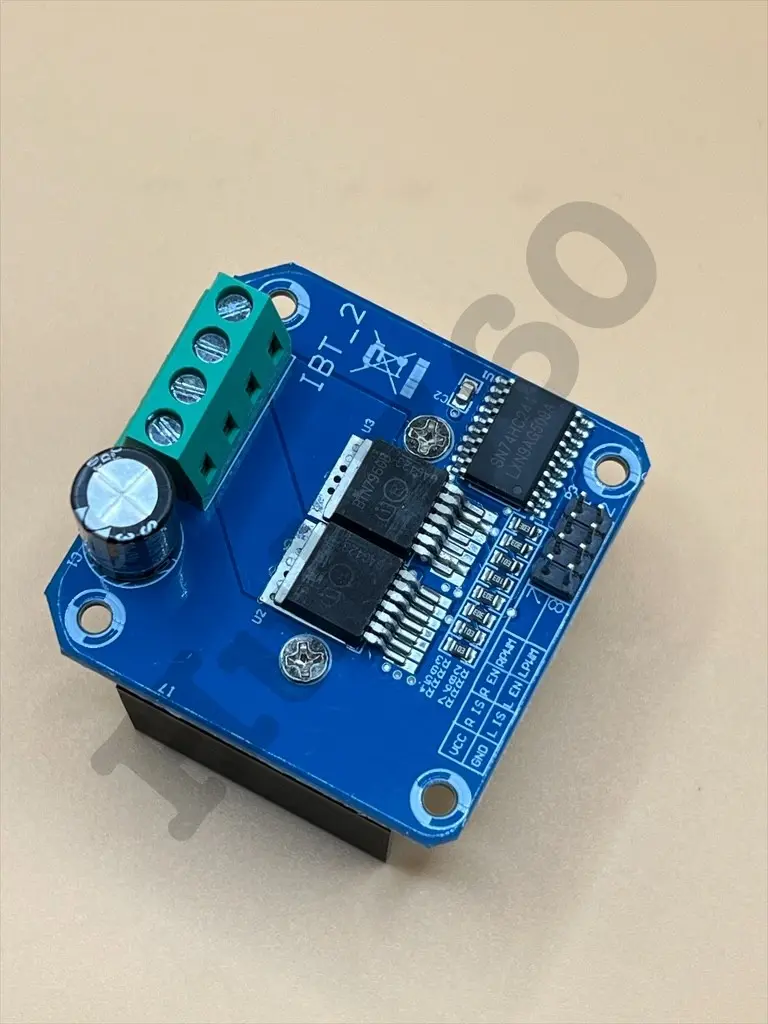

The BTS7960 43A Motor Driver Module is a high-current H-bridge motor driver designed for controlling large DC motors with high torque requirements. Built using dual BTS7960 driver ICs, it delivers stable, efficient, and bidirectional motor control with advanced protection features.
Key Features
- High-Power Motor Control: Supports up to 43A continuous current for large DC motors
- Dual BTS7960 H-Bridge Drivers: Ensures efficient forward and reverse motor operation
- PWM Speed Control: Supports high-frequency PWM signals for smooth and precise speed adjustment
- Current Limiting Protection: Prevents damage from overcurrent conditions
- Thermal Protection: Built-in temperature monitoring prevents overheating
- Microcontroller Compatible: Works seamlessly with Arduino, ESP32, STM32, and Raspberry Pi
Specification
- Operating Voltage: 6V – 27V DC
- Continuous Current: Up to 43A
- PWM Frequency: Up to 25kHz
- Logic Level Input: 3.3V / 5V compatible
- Overcurrent protection
- Overheating protection
- Short-circuit protection
- Protection Features:
Application
- Smart robotic vehicles
- High-power DC motor control
- Industrial automation systems
- Electric mobility projects
- DIY robotics and mechatronics
Why Choose This Motor Driver?
✔ Handles Large Motors – Ideal for high-current and high-torque applications
✔ Built-in Safety Protections – Ensures reliable and safe operation
✔ Easy Integration – Compatible with popular microcontrollers
