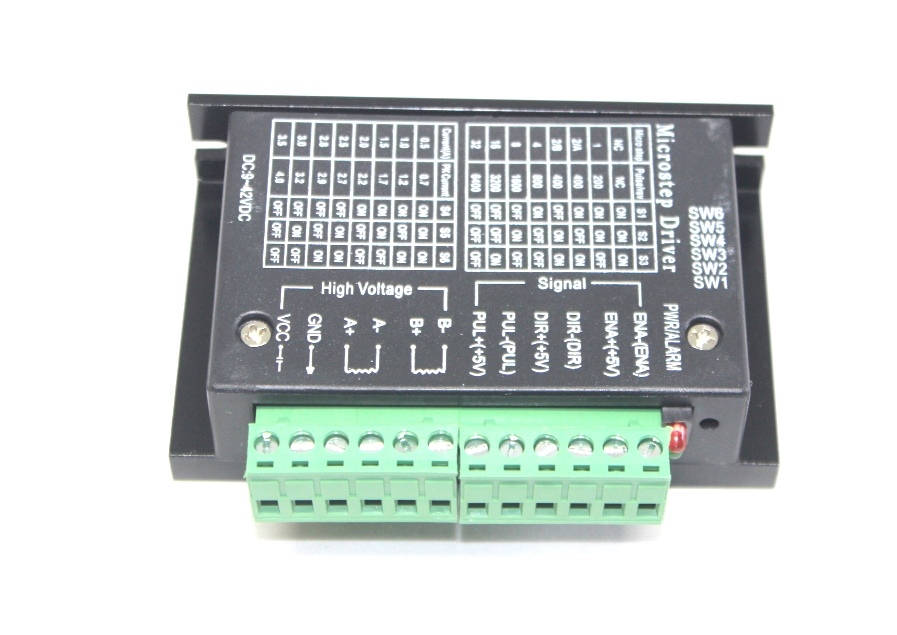

TB6600 stepper motor driver
The TB6600 is a high-performance stepper motor driver that supports microstepping and offers a wide range of operating voltages and currents. It is designed to drive 2-phase stepper motors efficiently and reliably, providing adjustable current control and protection features such as overcurrent, under-voltage, and overheating protection. The TB6600 is suitable for CNC machines, 3D printers, robotics, and other applications requiring precise motor control. It is capable of delivering up to 4.5A of current per phase and supports multiple microstepping modes to enhance motion smoothness and accuracy.
Key Features:
- High-performance stepper motor driver
- Supports 2-phase stepper motors
- Adjustable current control up to 4.5A per phase
- Wide operating voltage range: 9V to 42V
- Microstepping support: Full step, half step, 1/4, 1/8, 1/16, 1/32 step modes
- Built-in protection features: Overcurrent, under-voltage, and overheating protection
- High efficiency and low heat generation
- Compact and robust design
- Easy to interface with various controllers
- Operating Voltage: 9V to 42V
- Output Current: 0.2A to 4.5A per phase (adjustable)
- Microstepping: Full, 1/2, 1/4, 1/8, 1/16, 1/32
- Control Signal Voltage: 3.3V to 24V
- Step Frequency: Up to 200kHz
- Protection: Overcurrent, under-voltage, overheating
- CNC machines
- 3D printers
- Robotics
- Automated machinery
- Precision motion control systems
