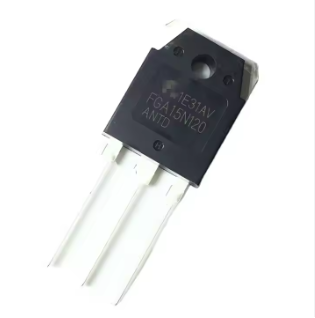

FGA15N120ANTD induction cooker power IC
This content will be shared across all product pages.
Description:
The FGA15N120ANTD is a 1200V N-Channel Power MOSFET (IGBT) designed for high-voltage, high-power applications. It utilizes Fairchild Semiconductor's proprietary NPT (Non-Punch Through) trench technology, offering superior conduction and switching performance, high avalanche ruggedness, and easy parallel operation.
Key Features:
- High voltage rating: 1200V
- High current capability: 15A
- Low saturation voltage (VCE(sat)) for efficient power conversion
- Low switching losses for improved efficiency
- Enhanced avalanche capability for robust operation
- Suitable for parallel operation for increased current handling
- NPT trench technology for optimized performance
Applications:
- Power converters and inverters
- Motor drives and control systems
- Induction heating and welding equipment
- Power supplies for industrial and commercial applications
Technical Specifications:
For detailed technical specifications, including electrical characteristics, thermal performance, package information, and application notes, please refer to the datasheet.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
