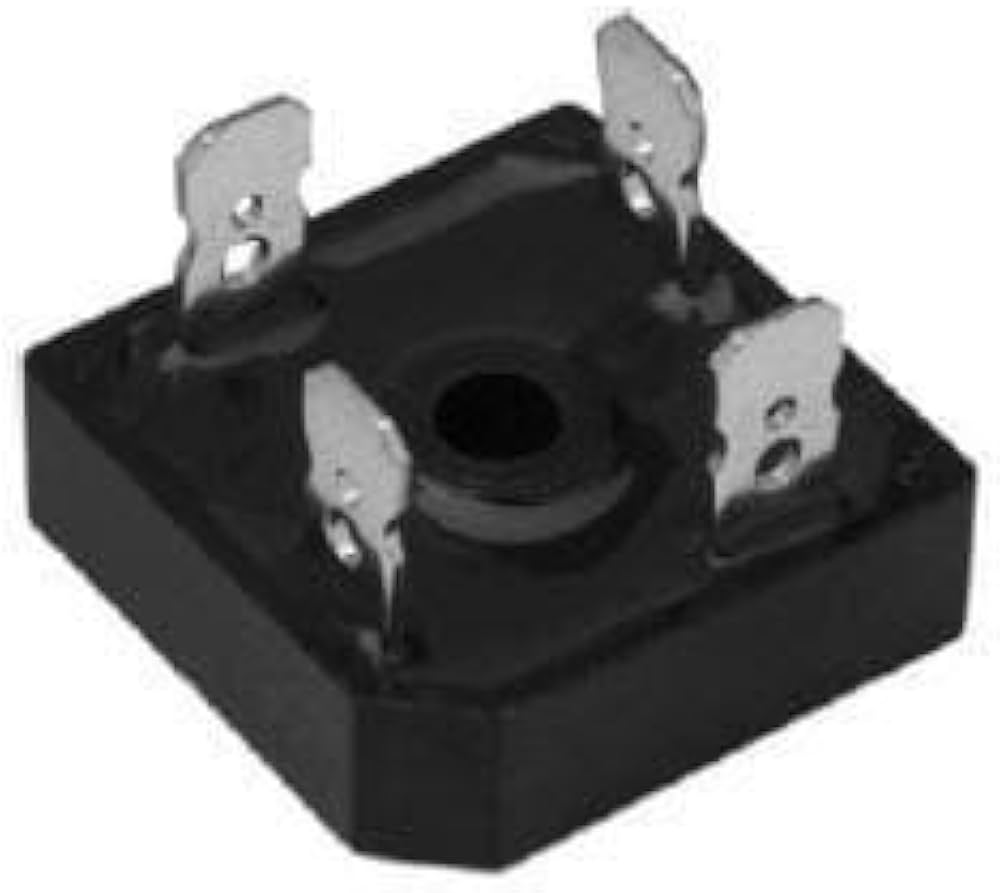

IR26MB120A 25A 1200V bridge rectifier
This content will be shared across all product pages.
Description: The IR26MB120A is a high-current, high-voltage bridge rectifier designed for industrial and commercial applications requiring efficient rectification of AC to DC power. It is suitable for use in power supplies, motor controls, welding equipment, and other electronic circuits where reliable rectification and high current capability are essential. The bridge rectifier is built with robust materials and is designed to withstand high surge currents and operating temperatures.
Key Features:
- High-current bridge rectifier
- High voltage rating for industrial applications
- Efficient rectification of AC to DC power
- Robust construction for reliable performance
- Low forward voltage drop
- RoHS compliant
- Peak Repetitive Reverse Voltage (V_RRM): 1200V
- Average Forward Current (I_AV): 25A
- Surge Current (I_Surge): 300A
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 25A, T_C = 100°C)
- Operating Temperature Range: -40°C to +150°C
- Package Type: Through Hole, SIP-4
- Power supplies
- Motor drives
- Welding equipment
- Battery chargers
- Industrial automation
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
