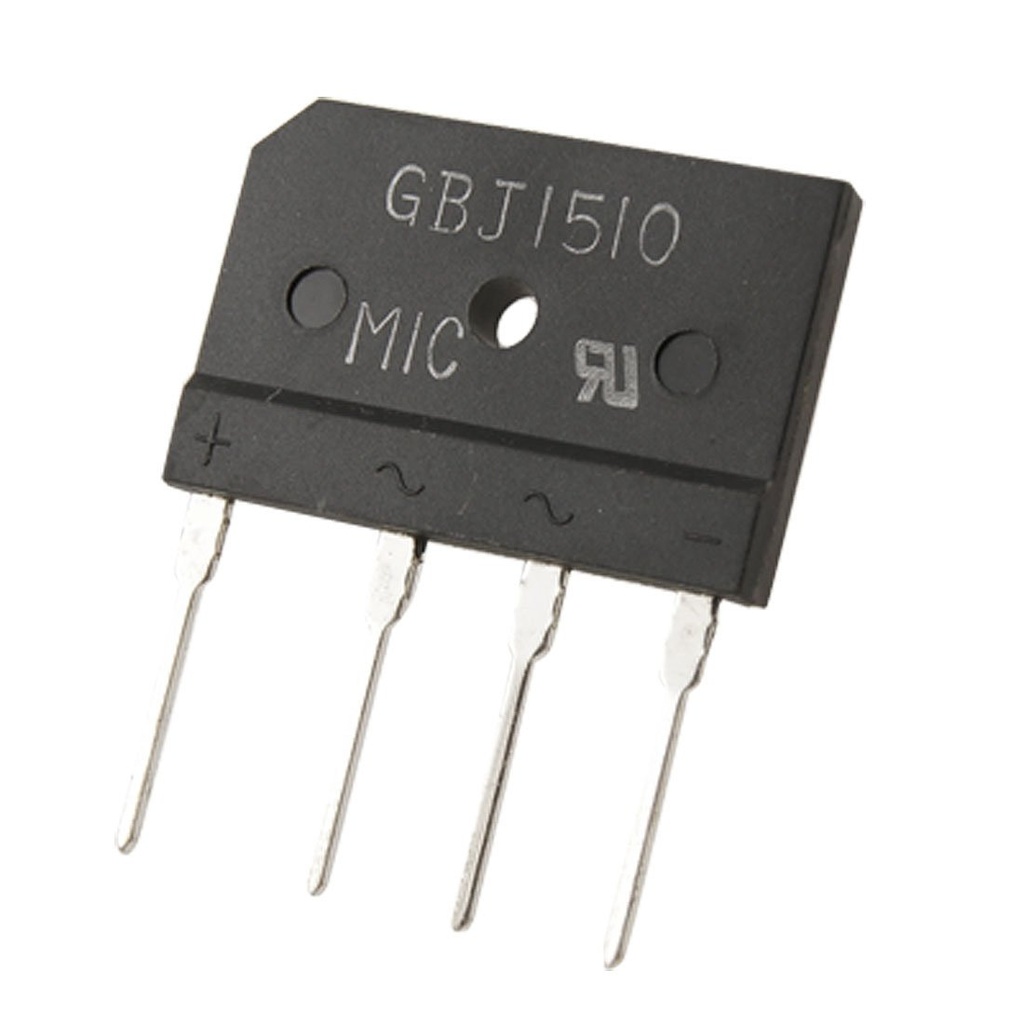

GBJ1510 15A 1000V bridge rectifier
Description: The GBJ1510 is a bridge rectifier designed to convert AC voltage to DC voltage efficiently in various electronic applications. It is suitable for use in power supplies, battery chargers, DC motor controls, and other circuits requiring reliable rectification with moderate current handling capabilities. The bridge rectifier is housed in a compact package, making it suitable for space-constrained designs while ensuring robust performance.
Key Features:
- Bridge rectifier configuration
- Converts AC voltage to DC voltage
- Moderate current handling capability
- Compact and efficient design
- RoHS compliant
- Peak Repetitive Reverse Voltage (V_RRM): 1000V
- Average Rectified Output Current (I_O): 15A
- Surge Overload Rating: 300A (peak forward surge current, 8.3ms single half sine-wave)
- Maximum Forward Voltage Drop (V_F): 1.1V (at I_F = 15A, T_A = 25°C)
- Operating Temperature Range: -55°C to +150°C
- Package Type: Through Hole, DIP-4
- Power supplies
- Battery chargers
- DC motor controls
- Welding equipment
- Industrial and consumer electronics
