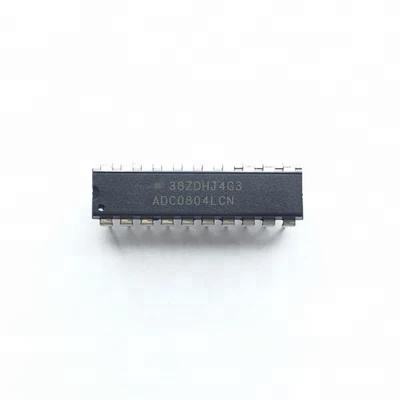

ADC0804LCN ADC
This content will be shared across all product pages.
Description:
The ADC0804LCN is an 8-bit successive approximation analog-to-digital converter (ADC) designed for applications requiring simple interfacing, low power consumption, and high-speed performance. It converts analog signals into digital data with 8-bit resolution, suitable for interfacing with microcontrollers and digital systems for various measurement and control applications.
Key Features:
- Resolution: 8-bit
- Successive approximation ADC architecture
- Single supply operation: 5V
- Low power consumption: 15 mW (typical)
- Fast conversion time: 100 µs (typical)
- Easy interfacing with microcontrollers and digital systems
- On-chip clock generator
- Package Type: DIP-28
- Supply Voltage Range: 4.5V to 6.3V
- Input Voltage Range: 0V to Vcc
- Conversion Time: 100 µs (typical)
- Differential Non-Linearity (DNL): ±0.5 LSB (max)
- Integral Non-Linearity (INL): ±0.5 LSB (max)
- Operating Temperature Range: 0°C to +70°C
- Dimensions: 38.1 mm x 7.62 mm x 4.57 mm
- Weight: 2.67 g
- Data Acquisition Systems: Used in systems requiring analog-to-digital conversion.
- Process Control: Converts sensor outputs into digital data for monitoring and control.
- Measurement Equipment: Provides digital representation of analog signals in measurement devices.
- Embedded Systems: Interfaces with microcontrollers for digital signal processing.
- Communication Systems: Used in digital communication equipment for signal processing.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
