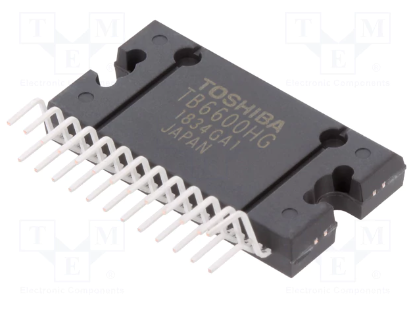

TB6600HG Motor driver chip

Description: The TB6600HG is a stepper motor driver IC designed to drive bipolar stepper motors in various applications requiring precise control and high torque. It incorporates pulse-width modulation (PWM) current control to achieve efficient operation and can drive motors with voltages up to 50V and currents up to 5A per phase. The TB6600HG is housed in a compact and thermally efficient HZIP25 package, making it suitable for use in CNC machines, 3D printers, robotics, and other automated systems. Key Features:

• Bipolar stepper motor driver IC
• Operating voltage: 10V to 50V
• Output current: Up to 5A per phase
• Pulse-width modulation (PWM) current control
• Overheat protection and overcurrent detection
• HZIP25 package for effective heat dissipation

Technical Specifications:

• Supply voltage: 10V to 50V
• Output current: Up to 5A per phase
• Logic input voltage: 3.3V to 5V
• Control signal: Pulse and direction input
• Protection features: Overcurrent, thermal shutdown
• Operating temperature range: -40°C to +85°C

Applications:

• CNC machines
• 3D printers
• Robotics
• Automated equipment
• Industrial automation

Datasheet: For detailed technical information, refer to the TB6600HG motor driver IC datasheet.
