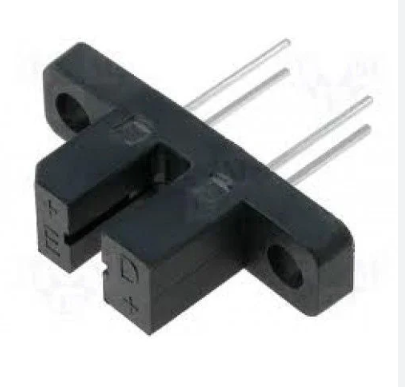

HY860C Concave photoelectric sensor
This content will be shared across all product pages.
Description: The HY860C Concave photoelectric sensor is a versatile sensor designed for precise detection of objects using the principle of photoelectric sensing. It is widely used in various industrial and automation applications to detect the presence or absence of objects, measure distances, and monitor changes in surface conditions. The sensor is known for its high sensitivity, reliability, and compact design, making it suitable for integration into different systems.
Key Features:
- High sensitivity photoelectric detection
- Concave design for enhanced focus and detection accuracy
- Reliable performance in various environmental conditions
- Compact and robust construction
- Easy installation and maintenance
- RoHS compliant
- Detection Range: Up to 100mm
- Response Time: ≤ 1ms
- Operating Voltage: 10-30V DC
- Output Type: NPN/PNP, NO/NC
- Current Consumption: ≤ 20mA
- Operating Temperature Range: -25°C to +55°C
- Protection Rating: IP67
- Housing Material: ABS plastic
- Industrial automation
- Conveyor systems
- Packaging machinery
- Robotics
- Material handling systems
- Safety and security systems
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
