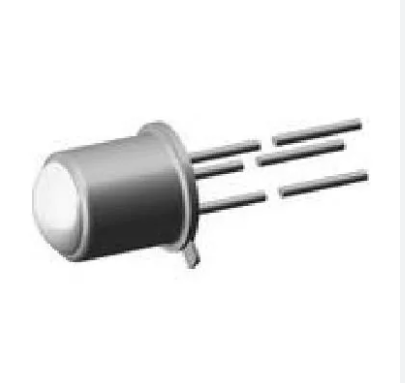

VBPW77NA phototransistor sensor

https://www.hub360.cc/web/image/product.template/14894/image_1920?unique=bd1def9
(0 review)
8 sold in last 24 hours

₦ 3,441.86 3441.86 NGN ₦ 3,441.86 Tax Excluded

₦ 3,700.00 Tax Excluded

Not Available For Sale

(₦ 0.00 / Units)
7 people are viewing this right now

This combination does not exist.

This content will be shared across all product pages.

Contact Us
The VBPW77NA Phototransistor Sensor is a high-performance photodetector designed for applications requiring reliable light sensing and detection. This sensor is ideal for use in light control systems, optical encoders, and various other light-sensing applications. With its high sensitivity and compact design, it provides accurate and consistent performance. Key Features:
  • High sensitivity to light
  • Fast response time
  • Compact and robust design
  • Easy to integrate into various applications
  • Reliable performance over a wide range of temperatures
Technical Specifications:
  • Sensor Type: Phototransistor
  • Wavelength Sensitivity: 850 nm
  • Collector-Emitter Voltage (VCEO): 70V
  • Emitter-Collector Voltage (VECO): 5V
  • Collector Current (IC): 50 mA
  • Dark Current (ID): 100 nA
  • Response Time: < 10 µs
  • Package Type: T-1 (3mm)
  • Operating Temperature: -40°C to +85°C
Applications:
  • Light control systems
  • Optical encoders
  • IR remote control
  • Photo-interrupters
  • Industrial automation
  • Position sensing
Usage:
  1. Integration: Integrate the VBPW77NA sensor into your circuit design.
  2. Power Supply: Connect to an appropriate power supply within the specified voltage range.
  3. Calibration: Adjust the sensor placement and circuit parameters for optimal performance.
  4. Testing: Test the sensor in its application environment to ensure accurate light detection and response.
Caution:
  • Handle with care to prevent damage from static discharge.
  • Ensure proper orientation and alignment in the circuit for optimal performance.
  • Avoid exposure to excessive light levels to prevent saturation.
Datasheet: For more detailed technical information, refer to the VBPW77NA Phototransistor Sensor Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
