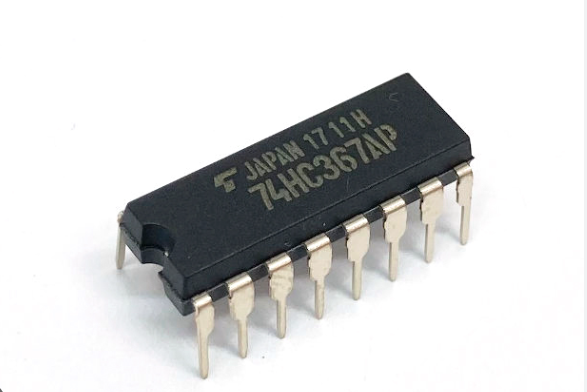

74HC367 3 state 6 phase line driver
This content will be shared across all product pages.
Description:
The 74HC367 is a high-speed CMOS 3-state hex buffer/line driver with non-inverting outputs. It features six independent buffers, each capable of driving highly capacitive or relatively low-impedance loads. The device is designed to operate with a wide range of supply voltages and can drive outputs to a high state, low state, or high-impedance state. This makes it suitable for interfacing and driving bus lines in various digital systems.
Key Features:
- Six independent buffers
- Non-inverting outputs
- 3-state outputs for bus interfacing
- High-speed CMOS technology
- Wide operating voltage range: 2V to 6V
- Low power consumption
- High noise immunity
- Standard 16-pin DIP package
- Package Type: 16-pin DIP
- Supply Voltage (V_CC): 2V to 6V
- Input Voltage (V_IN): 0V to V_CC
- Output Voltage (V_OUT): 0V to V_CC
- Input High Voltage (V_IH): 3.15V (minimum) at V_CC = 6V
- Input Low Voltage (V_IL): 1.35V (maximum) at V_CC = 6V
- Output Current (I_O): ±25mA
- Quiescent Supply Current (I_CC): 8µA (maximum)
- Propagation Delay Time: 16ns (typical) at V_CC = 5V, C_L = 15pF
- High-Impedance State Leakage Current: ±1µA (maximum)
- Operating Temperature Range: -40°C to +85°C
- Bus Driving: Interfacing and driving bus lines in digital systems.
- Signal Buffering: Isolating and buffering digital signals.
- Level Shifting: Shifting voltage levels between different parts of a system.
- Data Transmission: Driving data lines over long distances.
- Digital Systems: Enhancing the driving capability of digital outputs.
Technical Specifications:
- Logic Family: CMOS
- Number of Channels: 3
- Switch Configuration: Single-Pole Double-Throw (SPDT)
- Supply Voltage Range: 3V to 15V
- “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
- “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
- Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
- Maximum Operating Frequency: 40 MHz at V_DD = 10V
Applications:
- Signal routing and switching
- Analog and digital multiplexing
- Audio and video signal processing
- Data acquisition systems
- Test equipment
