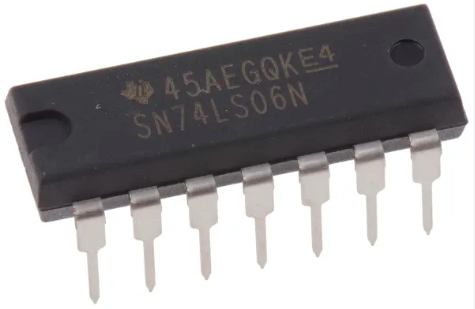

SN74LS06N (74LS06) inverter / Buffer
Description:
The SN74LS06N is a high-speed, low-power Hex Inverter with high-voltage open-collector outputs. It features six independent inverters, each with a single input and an open-collector output capable of handling higher voltage levels than standard TTL outputs. This IC is designed to convert TTL or CMOS logic levels to a common open-collector output voltage, making it suitable for interfacing with various digital circuits and devices.
Key Features:
- Hex inverter with high-voltage open-collector outputs in a single package
- High-speed operation: typically 12 ns propagation delay at VCC = 5V
- Open-collector outputs for interfacing with different voltage levels
- Low power consumption: typically ICC = 1.6 mA at VCC = 5V
- Wide operating voltage range: 4.75V to 5.25V
- TTL compatible inputs and outputs
- High fan-out capability: can drive TTL or CMOS loads
- Package Type: 14-pin DIP (Dual In-line Package)
- Supply Voltage (VCC): 4.75V to 5.25V
- Input Voltage (VIN): 0V to VCC
- Output Voltage (VOUT): Open-collector, capable of higher voltage levels (external pull-up resistor required)
- Input High Voltage (VIH): 2V (min) at VCC = 5V
- Input Low Voltage (VIL): 0.8V (max) at VCC = 5V
- Output Current (IOH, IOL): High sink current capability (external pull-up resistor required)
- Quiescent Supply Current (ICC): 1.6 mA (typical) at VCC = 5V
- Operating Temperature Range: 0°C to +70°C
- Signal inversion and level shifting in digital circuits
- Interface between different logic families (TTL to open-collector output)
- Pull-up resistor networks for bus termination
- Input/output circuits in microprocessor systems
- General-purpose digital logic applications
