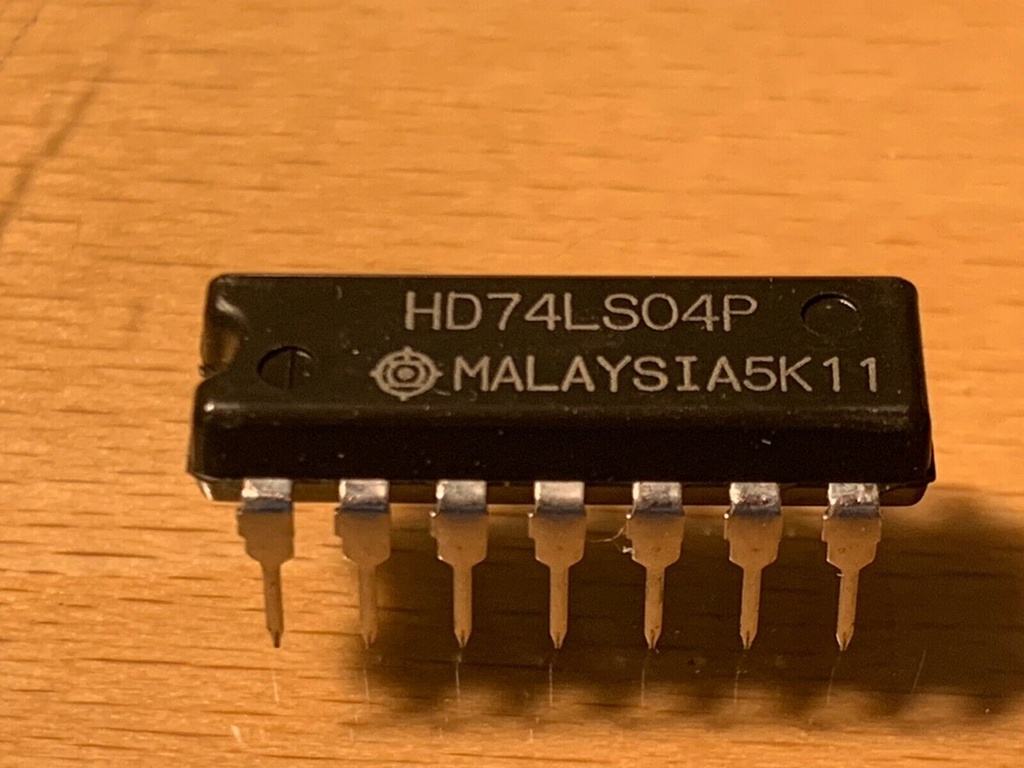

HD74LS04P (74LS04) Logic chip
Description:
The HD74LS04P is a high-speed, low-power Hex Inverter integrated circuit. It features six independent inverters, each with a single input and output. The inverter performs the Boolean function Y = NOT A (Y = A') where A is the input and Y is the output. This IC is widely used in digital electronics for signal inversion and logic level shifting applications.
Key Features:
- Hex inverter with six independent inverters in a single package
- High-speed operation: typically 12 ns propagation delay at VCC = 5V
- Low power consumption: typically ICC = 1.6 mA at VCC = 5V
- Wide operating voltage range: 4.75V to 5.25V
- TTL compatible inputs and outputs
- High fan-out capability: can drive TTL or CMOS loads
- Package Type: 14-pin DIP (Dual In-line Package)
- Supply Voltage (VCC): 4.75V to 5.25V
- Input Voltage (VIN): 0V to VCC
- Output Voltage (VOUT): 0V to VCC
- Input High Voltage (VIH): 2V (min) at VCC = 5V
- Input Low Voltage (VIL): 0.8V (max) at VCC = 5V
- Output Current (IOH, IOL): ±8 mA (max)
- Quiescent Supply Current (ICC): 1.6 mA (typical) at VCC = 5V
- Operating Temperature Range: 0°C to +70°C
- Signal inversion in digital circuits
- Logic level conversion between different voltage standards
- Clock generation and synchronization circuits
- Interface logic in microprocessor systems
- General-purpose digital logic applications
