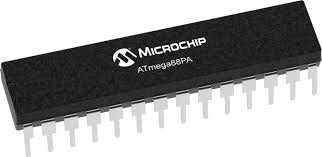

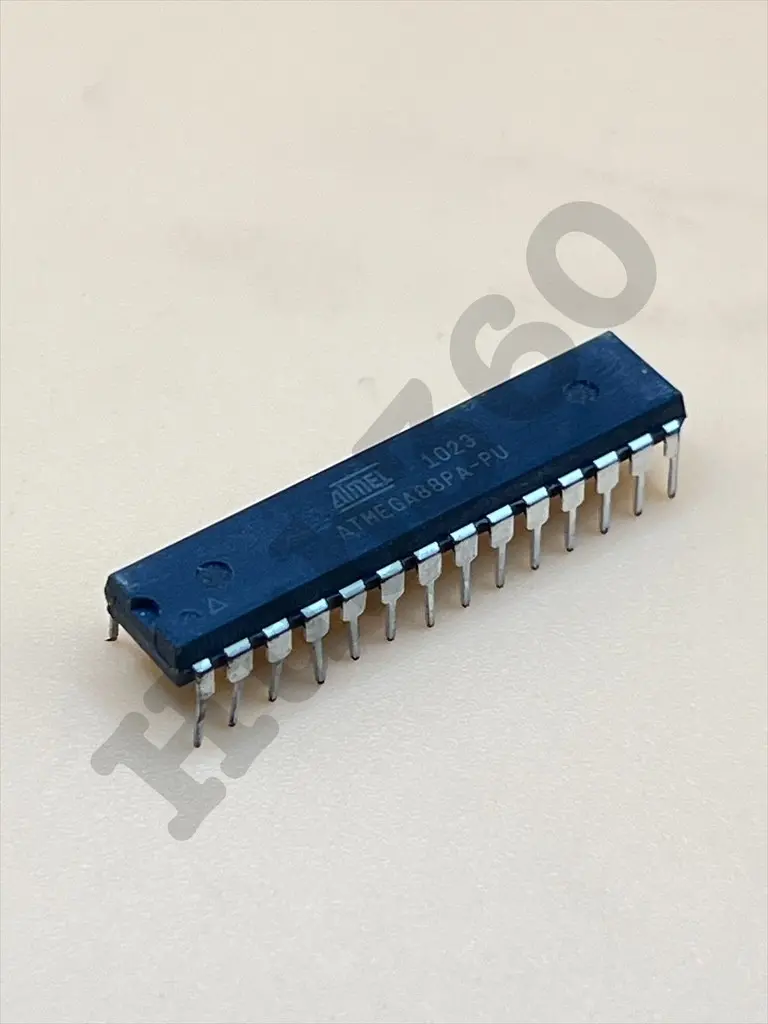

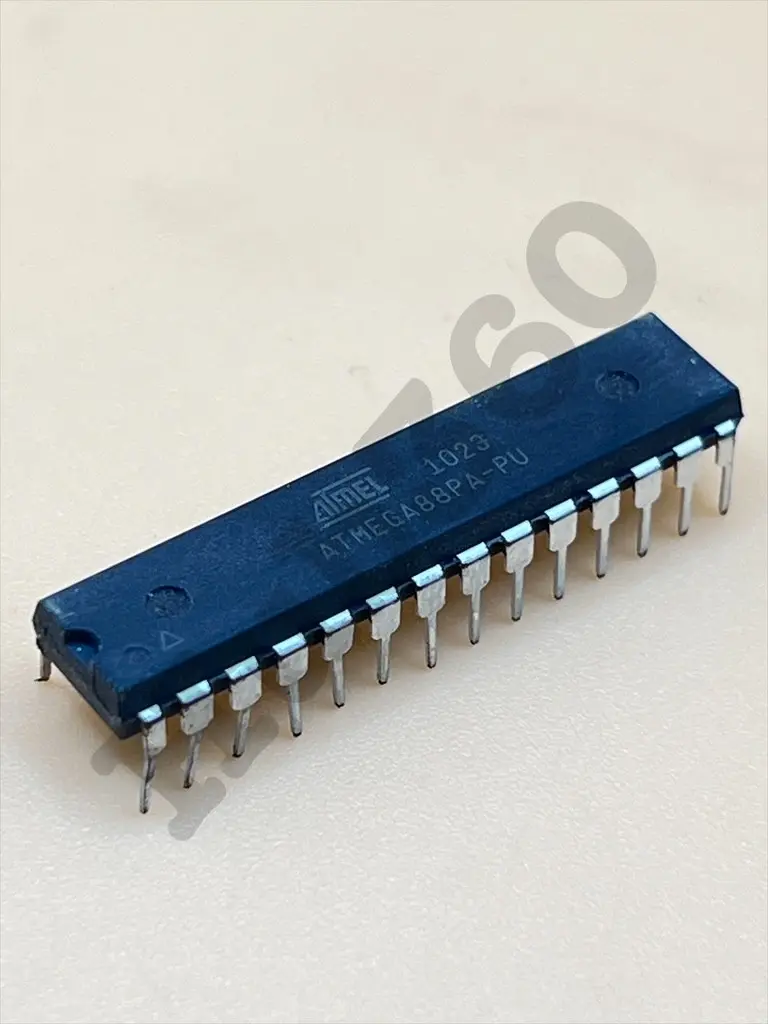

The ATMEGA88PA-PU is a versatile and efficient 8-bit microcontroller from Microchip Technology's AVR family. It features 8KB of Flash memory, 1KB of SRAM, and 512B of EEPROM. With its comprehensive set of features and low power consumption, this microcontroller is suitable for a wide range of applications including embedded systems, consumer electronics, and industrial automation. Key Features:
  • 8KB of In-System Self-Programmable Flash
  • 1KB SRAM, 512B EEPROM
  • 23 General Purpose I/O Lines
  • 32 Working Registers
  • Up to 20 MIPS Throughput at 20 MHz
  • Fully Static Operation
  • 8-channel, 10-bit ADC
  • USART, SPI, and TWI (I2C) serial communication interfaces
  • Two 8-bit Timer/Counters with Separate Prescaler
  • One 16-bit Timer/Counter with Separate Prescaler
  • Real Time Counter with Separate Oscillator
  • External and Internal Interrupt Sources
  • Power-on Reset and Programmable Brown-out Detection
  • In-System Programming by On-chip Boot Program
  • Operating Voltage: 1.8V - 5.5V
Technical Specifications:
  • CPU: 8-bit AVR
  • Flash Memory: 8KB
  • SRAM: 1KB
  • EEPROM: 512B
  • Clock Speed: Up to 20 MHz
  • Operating Voltage: 1.8V to 5.5V
  • ADC: 8-channel, 10-bit
  • Timers: Two 8-bit, One 16-bit
  • Communication Interfaces: USART, SPI, TWI (I2C)
  • GPIO: 23 pins
  • Power Consumption:
    • Active Mode: 0.2mA at 1MHz, 1.8V
    • Power-down Mode: 0.1μA at 1.8V
Applications:
  • Consumer Electronics
  • Home Automation
  • Industrial Control Systems
  • Automotive Applications
  • Embedded Systems
  • Data Logging
  • Sensor Interfaces
Datasheet: For detailed technical information, refer to the ATMEGA88PA-PU Datasheet.

Technical Specifications:

  • Logic Family: CMOS
  • Number of Channels: 3
  • Switch Configuration: Single-Pole Double-Throw (SPDT)
  • Supply Voltage Range: 3V to 15V
  • “ON” Resistance (R_ON): 125Ω typical at V_DD = 10V
  • “OFF” Leakage Current (I_OFF): ±100pA typical at V_DD = 10V
  • Control Input Voltage (V_IH): 0.7 V_DD min, 0.3 V_DD max
  • Maximum Operating Frequency: 40 MHz at V_DD = 10V

Applications:

  • Signal routing and switching
  • Analog and digital multiplexing
  • Audio and video signal processing
  • Data acquisition systems
  • Test equipment
