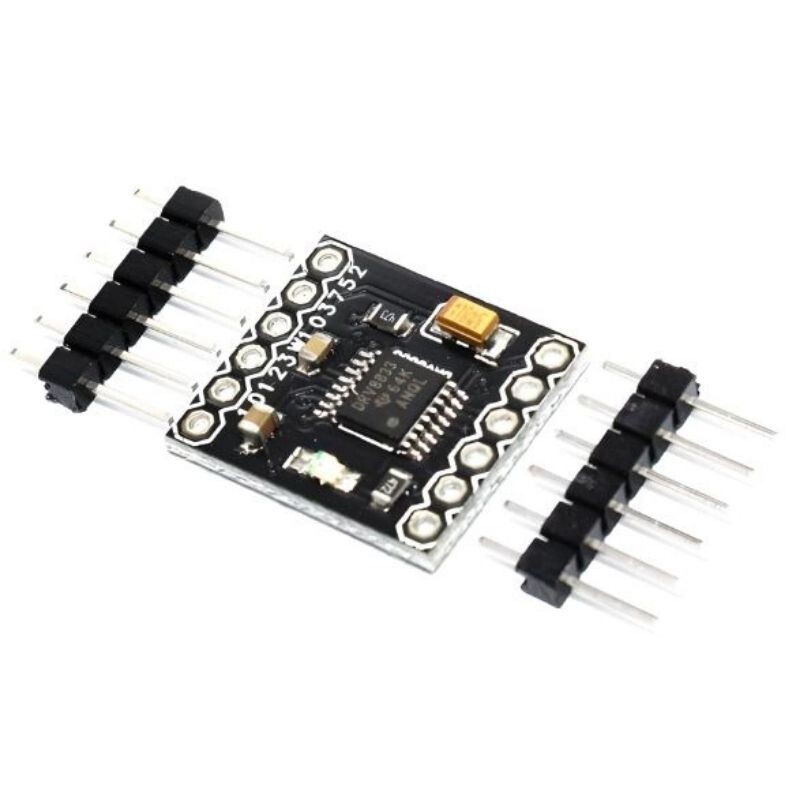

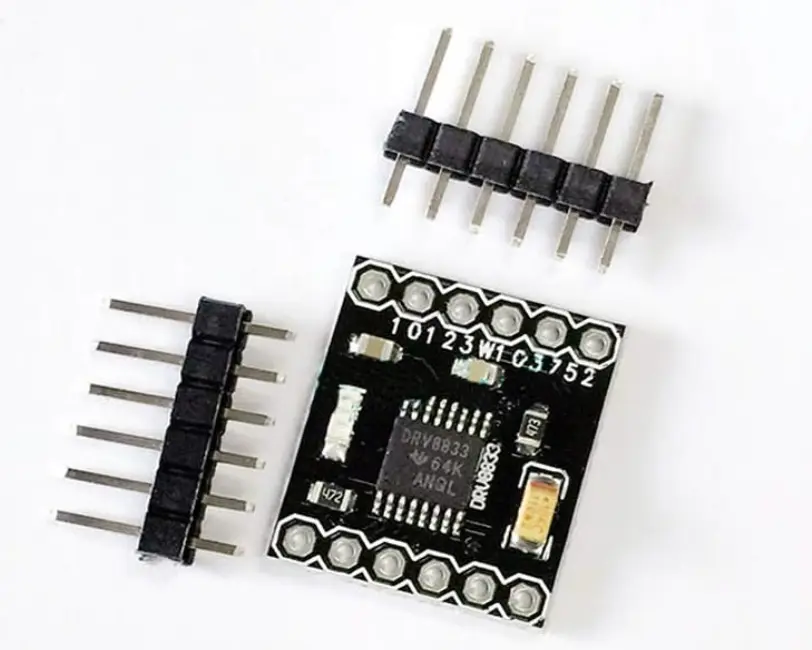

DRV8833 motor driver module
Description
The DRV8833 Motor Driver Module is a compact dual H-Bridge driver that can power two DC brush motors or a bipolar stepper motor. It's suitable for low-power robotics, automation, and embedded control systems because it includes built-in protection and operates at a low voltage
Key Features
- Dual H-Bridge Outputs: Controls two DC motors or one bipolar stepper motor.
- Wide Voltage Range: 2.7V to 10.8V.
- High Output Current: Delivers up to 1.5A continuous per channel.
- Low Power Operation: Ideal for battery-powered devices.
- Built-in Protection: Includes undervoltage lockout, overcurrent and short circuit protection and thermal shutdown. With low power sleep mode.
- Compact Design: Space-saving for embedded and portable projects.
- PWM Support: Uses PWM to regulate and limit current. Enables speed and direction control via microcontroller.
- Thermally Enhanced Surface-Mount Packages.
- Operating Voltage: 2.7V – 10.8V
- Input pin Voltage: 3V – 5.75V
- Continuous (Average) Output Current: 1.2A per channel
- Peak Output Current: 2A per channel
- Continuous paralleled output current: 4A

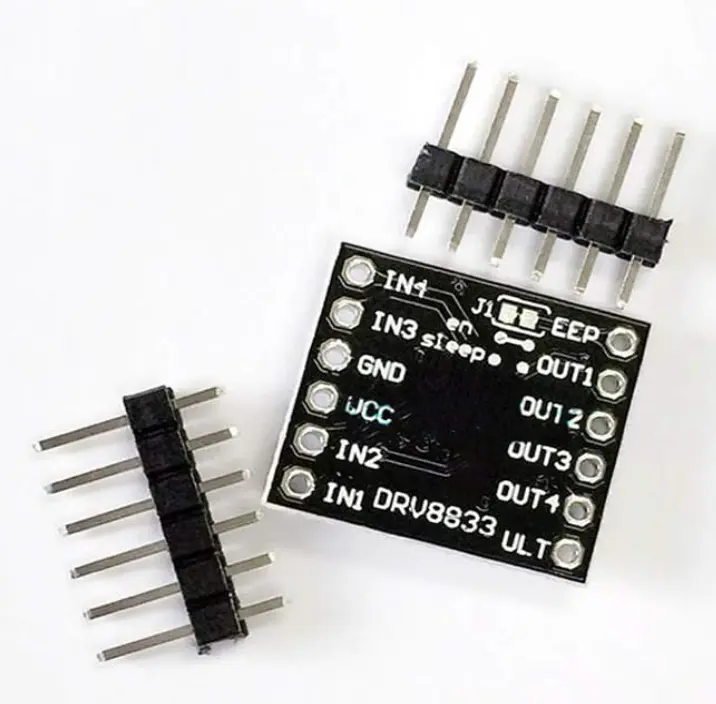

- Control Interface: IN1/IN2 and IN3/IN4 pins (PWM-compatible)
- Dimensions: Approx. 16mm x 18mm x 3mm
- PCB Type: Dual H-Bridge, breakout board
- Robotics
- Gaming machines
- Video security cameras
- POS printers
- Battery powered toys
