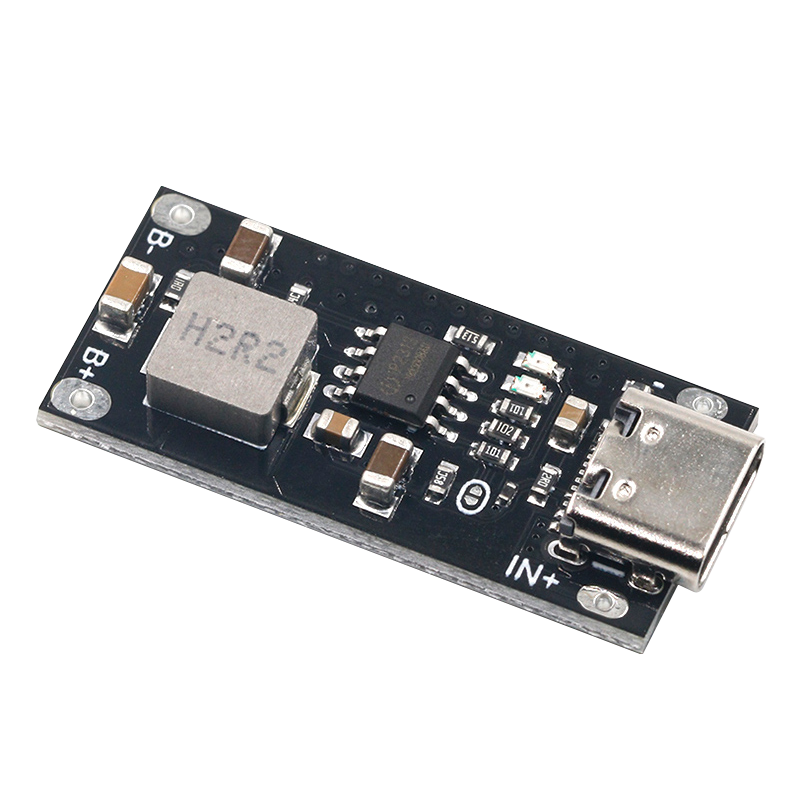

3A lipo fast charging module type C
The 3A LiPo Fast Charging Module (Type-C)Â is a high-performance lithium polymer battery charger designed for efficient and controlled charging of single-cell lithium batteries. Equipped with the advanced IP 2312 control chip and Type-C USB, it supports fast charging up to 3A, ensuring your devices are powered up quickly and safely.
Note:Â Not suitable for 3.2V lithium iron phosphate batteries.
Key Features
- Fast Charging Support: Charges LiPo batteries at up to 3A for reduced downtime.
- USB Type-C Input: Reversible, modern connector with wide compatibility.
- Battery Protection: Includes overcharge, over-discharge, and short-circuit protection.
- Charge Status Indicators: LEDs show charging and full-charge states.
- Compact & Easy to Integrate: Fits well in compact embedded designs and enclosures.
- Thermal Regulation: Built-in safety features manage temperature and current limits.
- Charging Modes: Trickle charge, constant current, constant voltage
- Trickle charge mode activates for batteries below 3V to prevent damage
- Input Interface: USB Type-C
- Main Control Chip: IP2312
- Default Current: 3A
- Battery Type Supported: 1-cell 3.7V LiPo/Li-ion
- Charge cut-off Voltage: 4.2V or 4.35
- Input Voltage Range: 4.5V – 5.5V DC
- Protection Features: Over-voltage, over-current, thermal, short-circuit
- Conversion efficiency: 3A 93%, 2A 94%, 1A 95%
- Status LEDs: Charging (red), Fully charged (blue or green depending on version)
- Dimensions: Approx. 33mm x 15mm
- Weight: About 3g.
- Portable embedded systems
- DIY power banks and wearable electronics
- IoT devices with rechargeable batteries
- Robotics and remote sensor systems
- Backup battery systems for microcontrollers
- Smartphone and tablets
