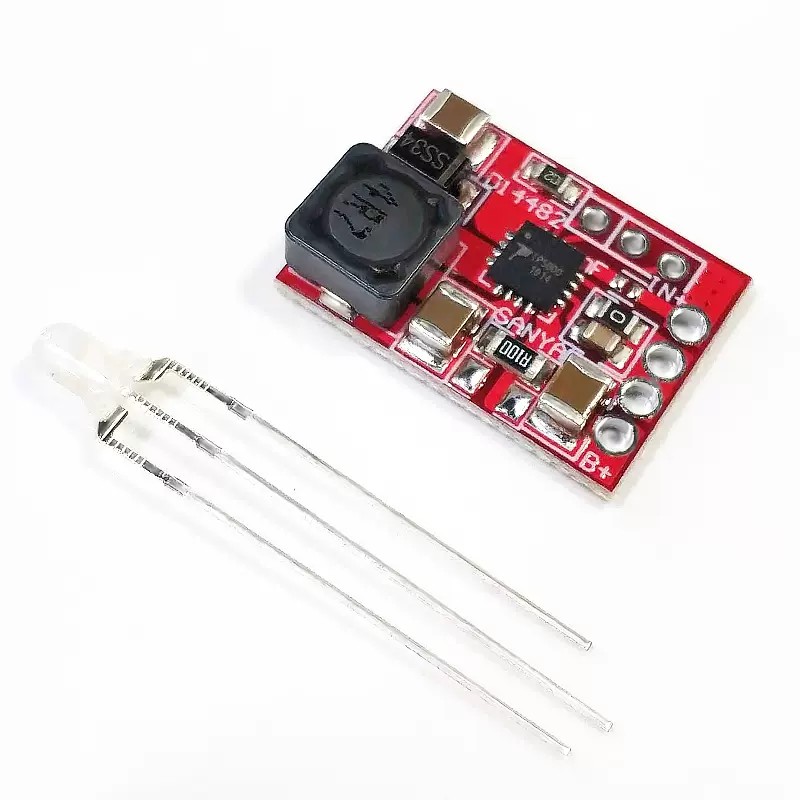

TP5000 Lipo charging module
The TP5000 Lipo charging module is a compact, high-efficiency module designed to charge both 3.7V lithium-ion and 3.2V lithium iron phosphate (LiFePOâ‚„) batteries. It supports a selectable charging voltage of 4.2V or 3.6V, adjustable via a simple solder pad configuration.
Features:
- Supports charging of both Lithium-ion and LiFePOâ‚„ batteries
- Auto cutoff when charging completes, protecting the battery from overcharge
- Selectable output voltage(4.2V for Li-ion, 3.6V for LiFePOâ‚„) via solder jumper
- Dual LED charge indicators(Red for charging, Green for full)
- Compact design, suitable for integration into DIY electronics projects
- Performance version supports up to 2A fast charging
- User-configurable charge current via resistor.
Specifications:
- Supported Battery Types:
- 7V Lithium-ion (4.2V full charge)
- 2V LiFePOâ‚„ (3.6V full charge)
- Charge Voltage:2V / 3.6V (selectable via solder pad)
- Voltage Accuracy:±1%
- Charging Current:
- Default: 1A
- Max: 2A (adjustable by changing sampling resistor using formula: 0.1V / R = Current)
- Input Voltage:5V – 9V (recommended 5V – 6V; must not exceed 9V)
- Charging Indicator:
- Red LED: Charging
- Green LED: Fully Charged (requires manual soldering of indicator LED)
- Charging Method:Auto cut-off when fully charged.
 Applications:
- DIY Battery Charging Projects: Ideal for hobbyists and makers building custom lithium or LiFePOâ‚„ battery chargers.
- Rechargeable Battery Packs: Can be integrated into portable power banks, flashlight packs, or handheld tools that use 3.7V Li-ion or 3.2V LiFePOâ‚„ cells.
- Embedded Electronics: Suitable for microcontroller-based systems (Arduino, ESP32, etc.) where compact and reliable battery charging is needed.
- Battery Maintenance in IoT Devices: Useful for IoT nodes or sensors that require rechargeable battery support with automatic charge management.
