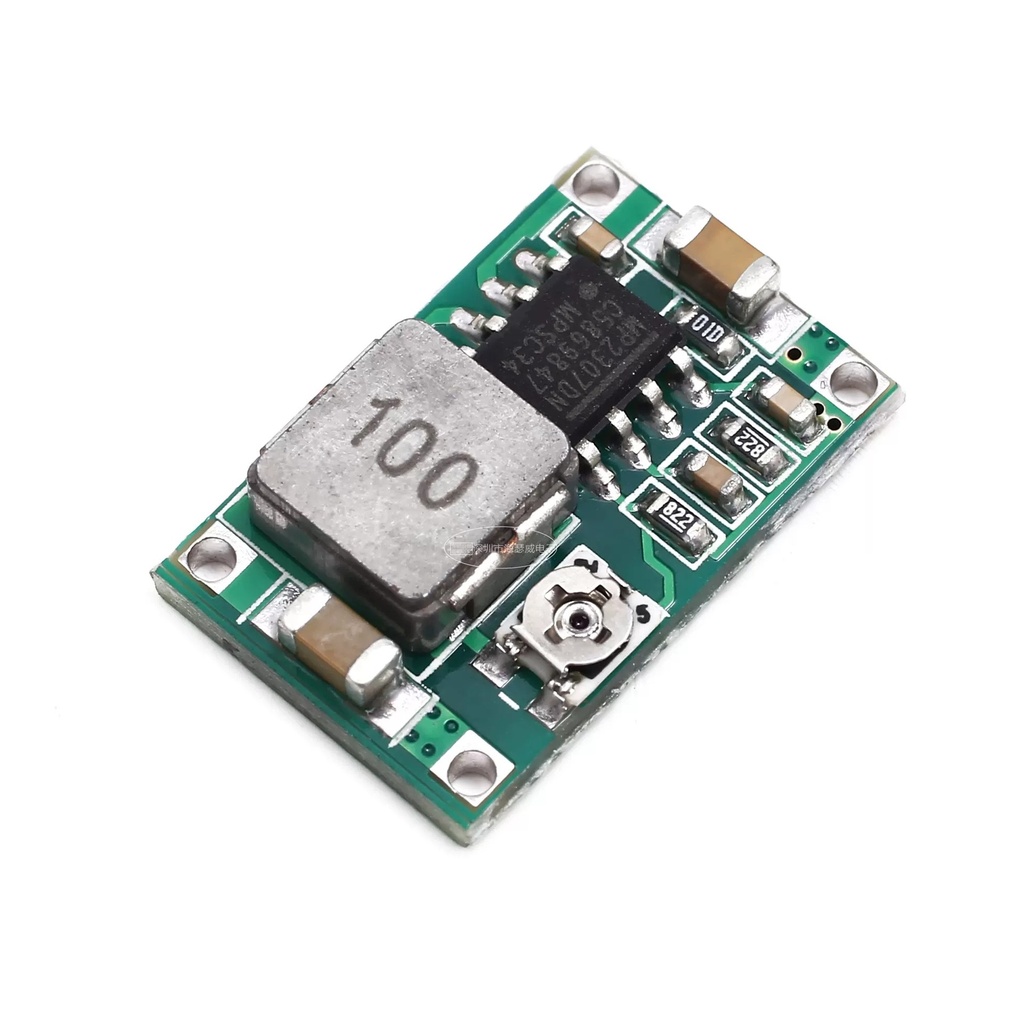

Mini360 DC-DC Buck module

Key Features:

• High Efficiency: Synchronous rectification minimizes heat loss

• Adjustable Output Voltage: Fine-tune voltage via onboard trimpot

• Built-in Protection: Thermal shutdown for enhanced safety

• Ultra-Compact Design: Perfect for RC models, drones, and handheld devices

• Plug-and-Play: Easily integrates into any DIY or embedded system

Specifications:

• Type: Non-isolated step-down (buck) converter

• Input Voltage: 4.75V – 23V DC

• Output Voltage: 1V – 17V DC (adjustable via onboard potentiometer)

• Output Current: 2A max (with adequate cooling)

• Efficiency: Up to 96%

• Rectification: Synchronous rectification

• Output Ripple: ~30mV (unloaded)

• Switching Frequency: ~340kHz

• Thermal Shutdown Protection: 160°C

• Dimensions: ~17mm x 11mm x 3.8mm

• Weight: ~2g

Applications:

• Power supply for cameras and surveillance systems

• DIY mobile/portable power banks

• Embedded power for car electronics and RC vehicles

• Communication devices and Wi-Fi modules

• Aviation models and FPV systems

• Arduino, ESP32, and Raspberry Pi projects
