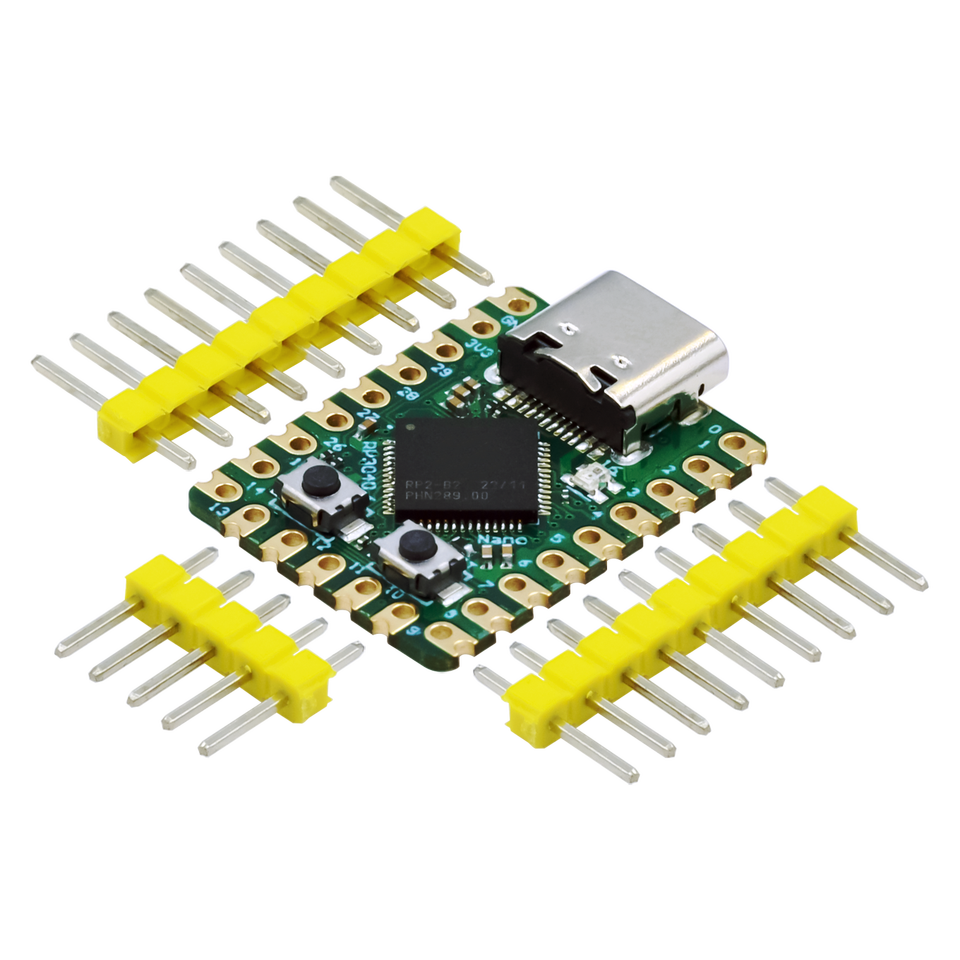

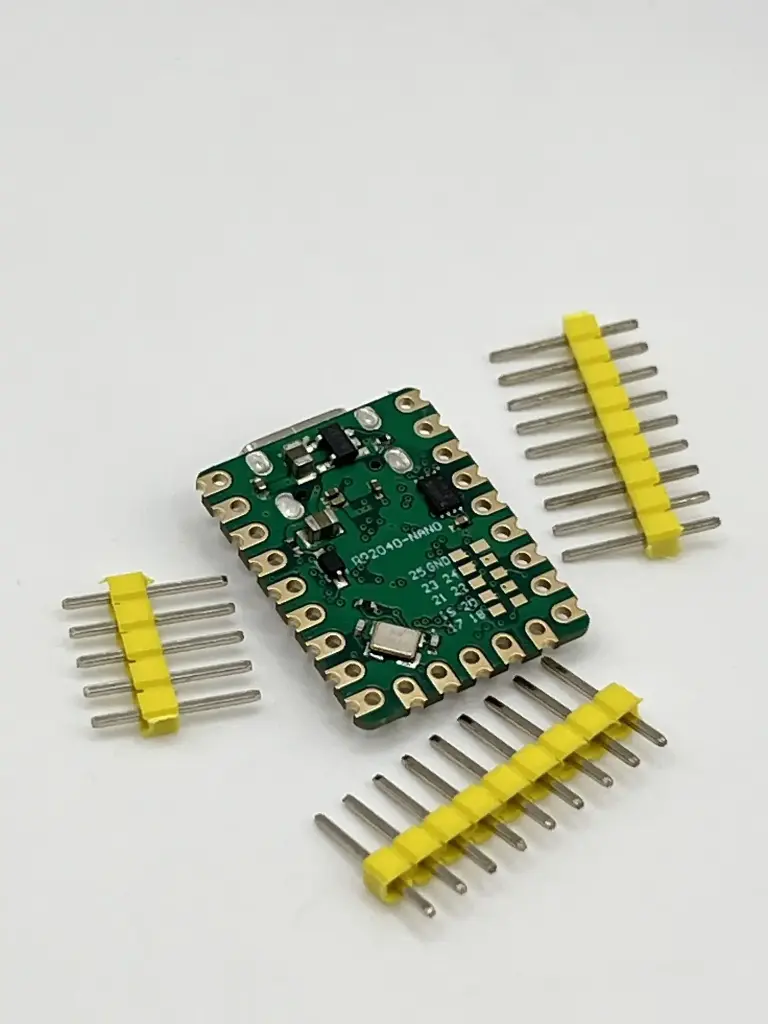

Raspberry Pi Pico Mini RP2040

Key Features:

• High Performance: Dual-core processor with floating-point support

• Ample Memory: 264KB SRAM and 2MB Flash for complex applications

• Flexible I/O: Programmable I/O (PIO) for custom hardware interfaces

• Versatile Connectivity: Full suite of UART, SPI, I2C, ADC, and PWM

• Built-in RGB LED: Ideal for status indicators or lighting effects

• USB-C Power and Programming: Convenient and modern interface

• Low Power Modes: Sleep and dormant modes for energy efficiency

Specifications:

• Microcontroller: Raspberry Pi RP2040 (dual-core ARM Cortex-M0+)

• Clock Speed: Default 48MHz, overclockable to 133MHz

• SRAM: 264KB

• Flash Memory: 2MB

• GPIO: 29 total (20 via header, 9 via pads)

• Peripherals:

  • 2× UART

  • 2× SPI

  • 2× I2C

  • 4× 12-bit ADC channels

  • 16× PWM channels

  • 8× PIO state machines

• LED: Onboard WS2812 RGB LED

• Boot Method: USB drag-and-drop (mass storage)

• Power Supply: USB Type-C

• Dimensions: 23.5mm × 18.2mm

Applications:

• Embedded Systems & Prototyping

• IoT Devices and Smart Home Projects

• Robotics & Automation

• STEM Education and Microcontroller Learning

• DIY Electronics and Gadget Design
