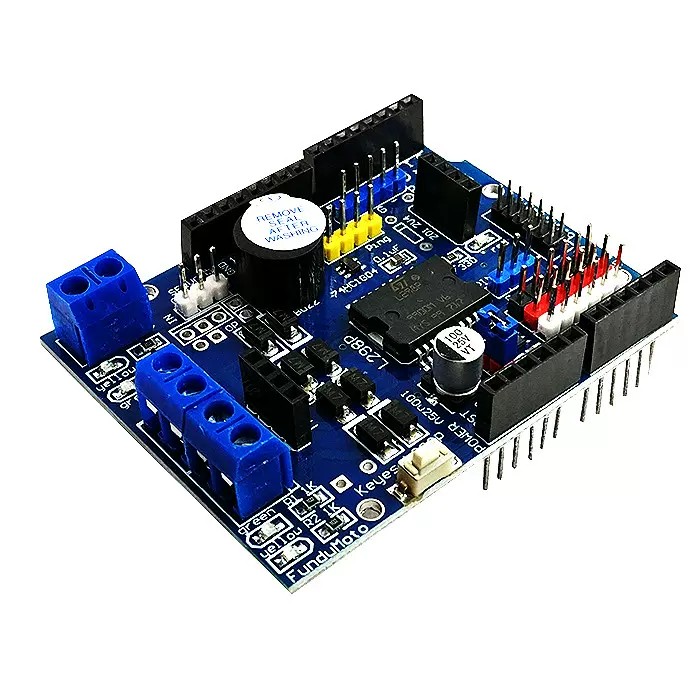

L298P Stepper Motor driver board

Key Features:

• Dual Motor Control: Drive two DC motors or one stepper motor simultaneously

• Flexible Voltage Support: Operates from 4.8V up to 35V for motor power

• PWM & PLL Compatible: Enables fine-tuned motor speed control

• High Current Output: Up to 2A per channel for powerful motor performance

• Easy Integration: Standard screw terminal block and logic pin headers

• Durable Design: Withstands wide temperature ranges and high dissipation

Specifications:

• Logic Voltage (VD): 5V

• Motor Supply Voltage:

  • VIN: 6.5V – 12V

  • PWRIN: 4.8V – 35V

• Logic Current (Iss): < 36mA

• Motor Current (Io): < 2A continuous

• Max Power Dissipation: 25W @ 75°C

• Signal Control Voltage:

  • High Level: ≥ 2.3V

  • Low Level: ≥ -0.3V

• Operating Temp: -25°C to +130°C

• Interface: 5.0mm pitch screw terminals

• Driver Architecture: Dual full-bridge (H-Bridge)

• Speed Control: Supports PWM and PLL

• Pinout: Uses D4–D7 for control signals

• Board Size: 68mm × 53mm

Applications:

• Robotics: Control wheels, arms, or sensor turrets in robots

• Automation Systems: Drive conveyor belts, actuators, or CNC components

• DIY Projects: Power motors in Arduino and Raspberry Pi builds

• Educational Kits: Excellent for learning about H-bridge motor control systems
