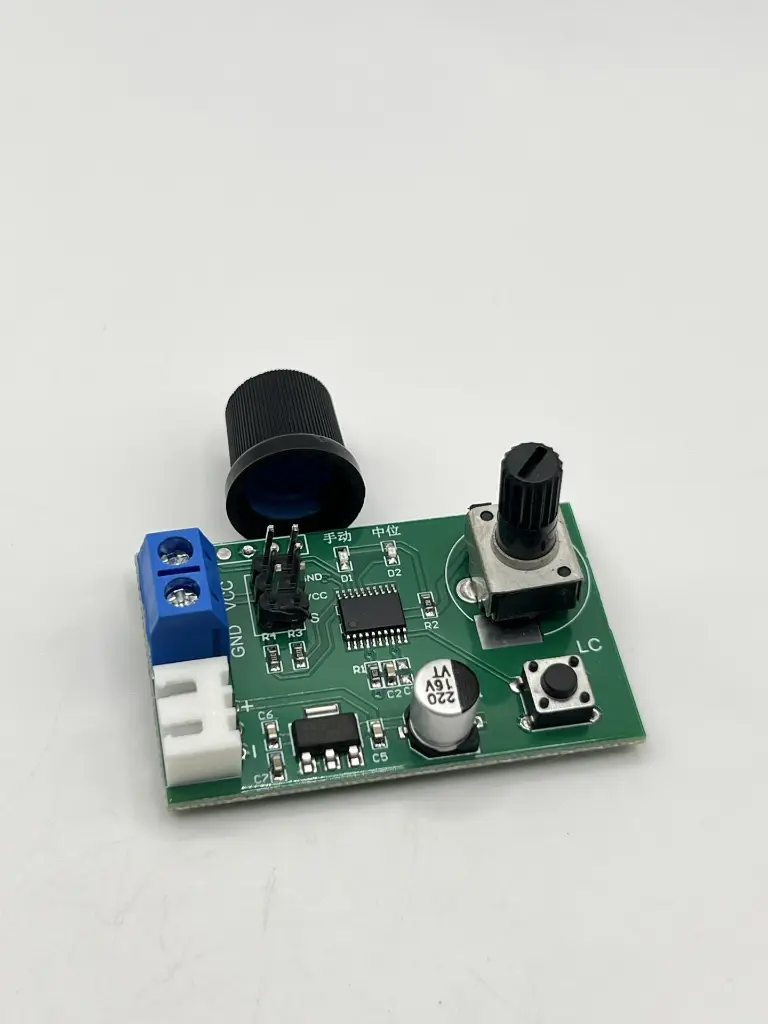

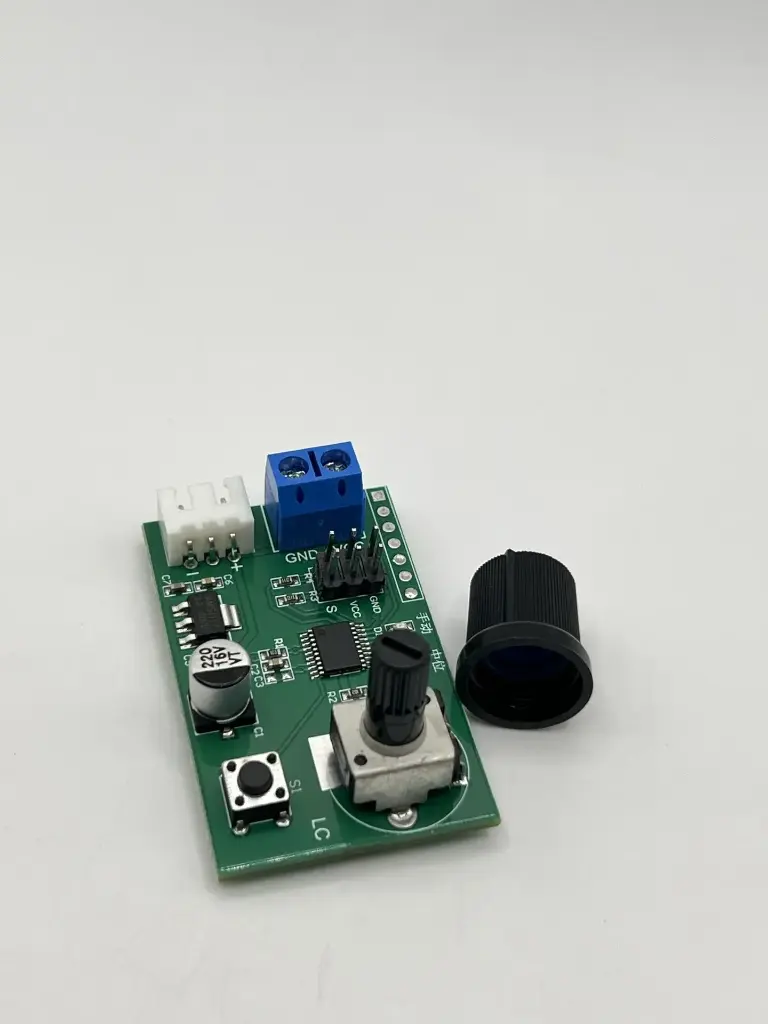

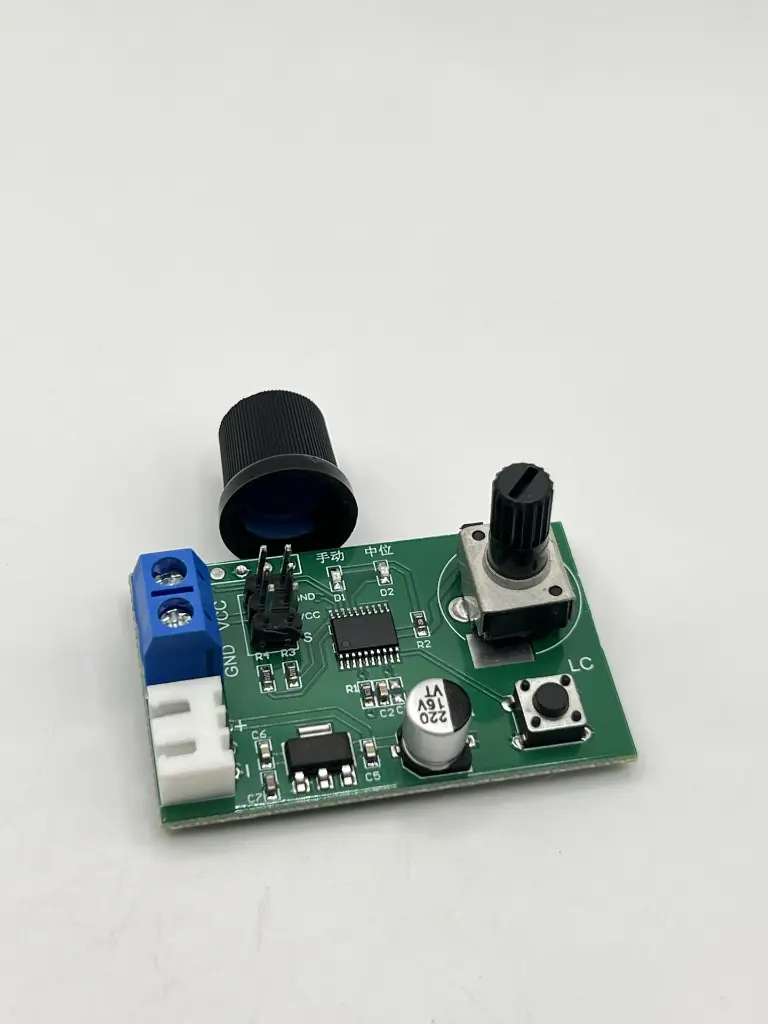

Dual Channel Servo controller module
This servo control module is a user-friendly, plug-and-play device designed for controlling servo motors. It offers three control modes, including knob-based manual adjustment and a centering function, making it ideal for servo motor testing and tuning applications.
Features:
- Supports manual (knob-based) control
- UART (serial) communication supported for external control
- Built-in auto-centering function
- Can control two servo motors simultaneously
- High-precision control for accurate positioning
- Utilizes STM8S103 microcontroller to output precise PWM signals
- Mode switching via onboard button
- Compatible with 2S rechargeable lithium batteries
Specifications:
- Input Voltage:DC 5V–9V (depends on application)
- Control Channels:2 channels
- Control Accuracy:±0.09°
- PWM Cycle:20ms
- Compatible Servo Pulse Width:5ms – 2.5ms
- Operating Temperature:-20°C to +70°C
- Humidity Range:5% – 90% RH
- Module Dimensions:48 × 30 × 30 mm
Applications:
- Robotics:Ideal for controlling servo motors in robots, especially for precise movements and positions.
- Automation Systems:Can be integrated into automated systems that require precise rotational control, like turntables or robotic arms.
- Educational Projects:Useful in educational setups to teach about servo motor control and PWM signals.
