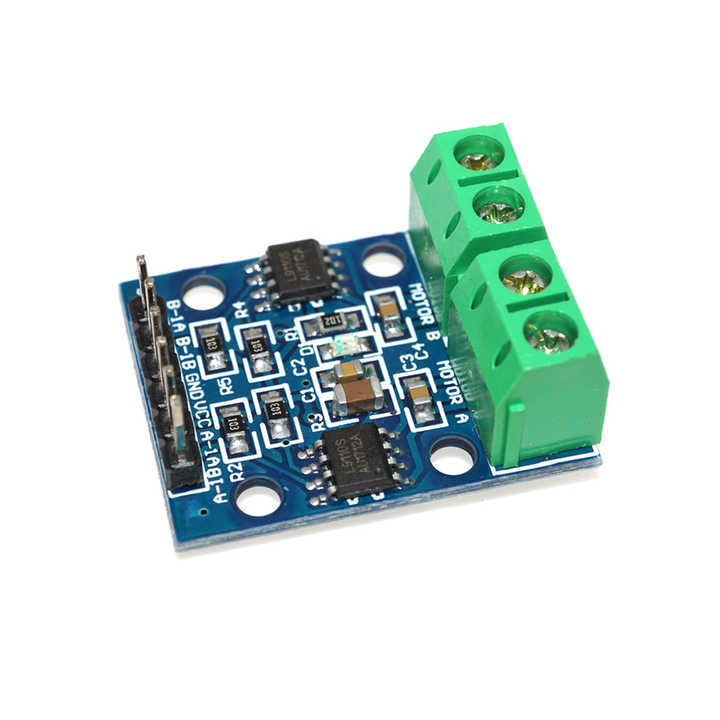

HG7881 Dual Channel motor driver module
The HG7881 Dual Channel Motor Driver Module is a compact, efficient solution for controlling two DC motors or one 2-phase stepper motor. Functionally equivalent to the L9110S driver, it features dual integrated motor driver chips and output clamp diodes for added protection and reliability.
Key Features:
-
Dual L9110S Drivers: Reliable control of two DC motors or one stepper motor
-
PWM Speed Control: Fine-tune motor speed and direction easily
-
Wide Voltage Support: Operates between 2.5V to 12V
-
Compact & Lightweight: Small size with mounting holes for ease of use
-
Logic-Level Compatible: Works seamlessly with Arduino, ESP32, Raspberry Pi, etc.
Technical Specifications:
-
Supply Voltage: 2.5V – 12V DC
-
Max Continuous Current: 800mA per channel
-
Logic Level Compatibility: 3.3V and 5V
-
Control Method: PWM (Pulse Width Modulation)
-
Board Dimensions: 29.2mm × 23mm
-
Protection Features: Integrated output clamp diodes
Applications:
-
Robotics & Mechatronics Projects
-
Motorized Toys & DIY Vehicles
-
Simple Automation Systems
-
STEM & Electronics Education Kits
