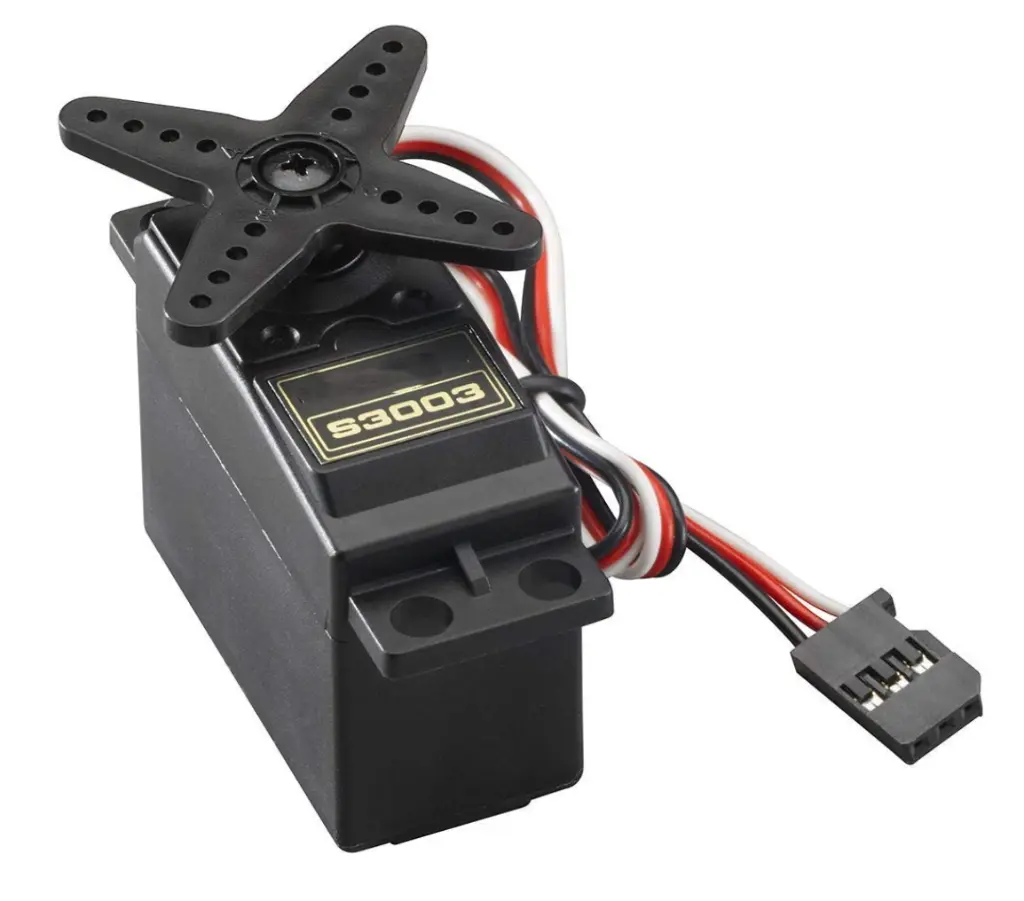

S3003 servo
he S3003 Standard Servo is a dependable analog servo motor, designed to deliver precise control and strong torque in a standard form factor. Whether you’re building robotic arms, RC cars, or automation systems, the S3003 offers a great balance of durability, performance, and cost-effectiveness.
Key Features:
-
Standard Size: Compatible with most RC and robotic kits
-
Durable Construction: Designed for consistent long-term use
-
High Torque Output: Powerful enough for medium-load applications
-
PWM Compatible: Easily controlled by Arduino, Raspberry Pi, and more
-
Precise Motion Control: Ideal for applications requiring accurate positioning
Technical Specifications:
-
Operating Voltage: 4.8V – 6.0V DC
-
Stall Torque:
-
3.2 kg·cm @ 4.8V
-
4.1 kg·cm @ 6.0V
-
-
Operating Speed:
-
0.20 sec/60° @ 4.8V
-
0.16 sec/60° @ 6.0V
-
-
Control Angle: Approx. 180°
-
Weight: 37g
-
Dimensions: 41mm (L) × 20mm (W) × 39mm (H)
-
Gear Type: Plastic
-
Connector: 3-pin female servo plug (signal, VCC, GND)
Applications:
-
RC Cars, Planes & Boats
-
Robotic Arms & Legs
-
Pan-Tilt Mechanisms
-
Small Actuation Systems
-
STEM and Educational Kits
