Description

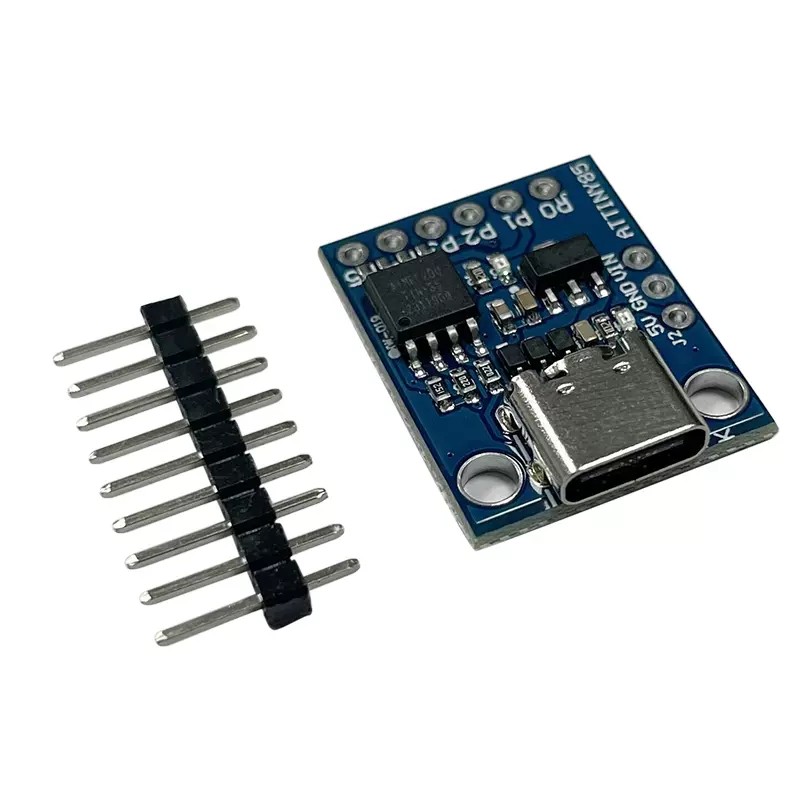

The ATTINY85 Micro Development Board (Type-C) is a miniature, cost-effective microcontroller platform built around the AVR 8-bit ATTINY85 CPU. Designed for space-limited projects, it provides powerful performance in a compact form factor, making it perfect for DIY electronics, automation systems, and educational training.
With USB Type-C connectivity and Arduino IDE compatibility, it’s easier than ever to program, test, and deploy small-scale embedded systems.
Key Features
- Compact & Lightweight – Perfect for small enclosures and portable projects.
- Flexible Interfaces – Supports SPI, I²C (via USI), and ADC for sensor or module integration.
- Arduino-Compatible – Fully programmable via Arduino IDE for quick development.
- Modern USB Type-C Port – Reversible, reliable, and convenient power/programming interface.
- Shield Support – Compatible with a range of add-on modules and shields
Specification
- Microcontroller: ATTINY85 (AVR 8-bit CPU)
- Operating Voltage: 5 V
- Input Voltage Range: 7 V – 16 V (up to 35 V tolerant)
- Clock Speed: Up to 20 MHz
- Flash Memory: 8 KB
- SRAM: 256 bytes
- EEPROM: 512 bytes
- GPIO Pins: 6
- Analog Inputs: 4 × 10-bit ADC channels
- Interfaces: USI (supports I²C, SPI, and 1-Wire)
- USB Port: Type-C (for power and programming)
- Dimensions: 21 mm × 18 mm × 4 mm
Application
- Small automation systems
- Battery-powered or low-power gadgets
- DIY electronics and hobbyist projects
- Educational training in embedded systems
- LED control, sensor testing, and timing applications
Why Choose the ATTINY85 Type-C Board
✔ Affordable and compact for beginners or professionals
✔ Easy to integrate with Arduino ecosystem
✔ Modern USB-C design simplifies development and power delivery
✔ Ideal for fast prototyping of smart, compact devices
