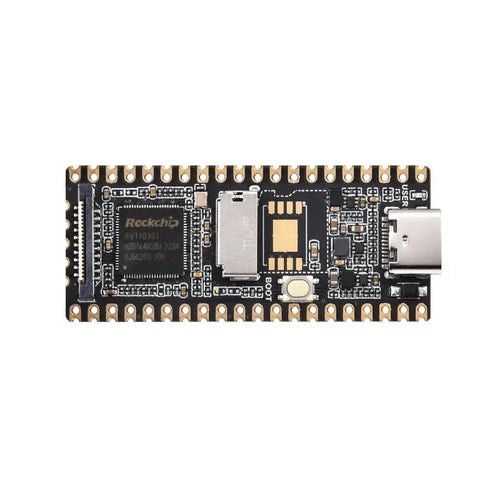

Luckfox Pico/RV1103 RISC-V AI Linux development board
The Luckfox Pico is a compact and powerful AI development board built on the Rockchip RV1103 SoC. It combines a high-efficiency Cortex-A7 CPU, an integrated RISC-V microcontroller, and a 0.5 TOPS NPU, making it ideal for AI vision, intelligent automation, and edge computing applications. With Linux support, a built-in 4MP image signal processor (ISP), and 64MB of high-bandwidth DDR2 RAM, this board is perfectly suited for projects involving machine learning, smart cameras, embedded control systems, and real-time video analytics.
Key Features:
- Dual-core architecture:
-
-
ARM Cortex-A7 processor (32-bit, 1.2GHz)
-
RISC-V low-power controller for fast boot and control logic
-
-
Integrated NPU:
-
Rockchip 4th-gen AI engine
-
Supports int4, int8, and int16 quantization
-
Delivers up to 0.5 TOPS (int8) or 1.0 TOPS (int4)
-
-
Image Signal Processor (ISP):
-
Up to 4MP input at 30fps
-
HDR, WDR, and advanced noise reduction supported
-
-
Video Encoding Efficiency:
-
Smart bitrate control for 50%+ data savings
-
Maintains high visual quality with lower bandwidth
-
-
Compact yet versatile:
-
Built-in power-on-reset (POR), audio codec, and Ethernet PHY
-
Optimized for embedded Linux + AI projects
-
Blue LED indicator, flexible GPIO pin access
-
Technical Specifications:
| Category | Details |
|---|---|
| Main CPU | ARM Cortex-A7, 32-bit, 1.2GHz |
| Co-Processor | Built-in RISC-V MCU |
| NPU | 0.5 TOPS (int8), 1.0 TOPS (int4) |
| Image Support | 4MP input @ 30fps, ISP 3.2 |
| Memory | 64MB DDR2 |
| Video Processing | Adaptive bitrate encoding, H.264/H.265 |
| USB Interface | USB 2.0 Host/Device |
| Camera Interface | MIPI CSI, 2-lane |
| Networking | 10/100M Ethernet MAC + embedded PHY |
| GPIO Pins | 24x GPIOs |
| Audio | Integrated audio codec |
| Storage | TF card slot (MicroSD, not included) |
| Operating System | Linux |
| Size | Ultra-compact |
Applications:
-
Smart Home Devices
→ Facial recognition doorbells, smart lighting hubs, voice-enabled controls -
AI Vision Systems
→ Object detection, surveillance cameras, license plate recognition -
Robotics & Drones
→ On-device inference for navigation, gesture detection, and environment analysis -
Industrial Automation
→ Machine monitoring, smart sensors, factory condition monitoring -
Smart Monitoring Solutions
→ Real-time analytics in retail, agriculture, logistics, or security -
Edge AI Development
→ Offline, ultra-fast inference models running directly on-device
Why Choose Luckfox Pico?
The Luckfox Pico offers a unique combination of compact size, edge AI processing, and Linux programmability, all at a competitive price. It is perfect for developers needing a low-power, fast-booting platform with robust AI inference capability and camera input support for next-generation smart devices.
