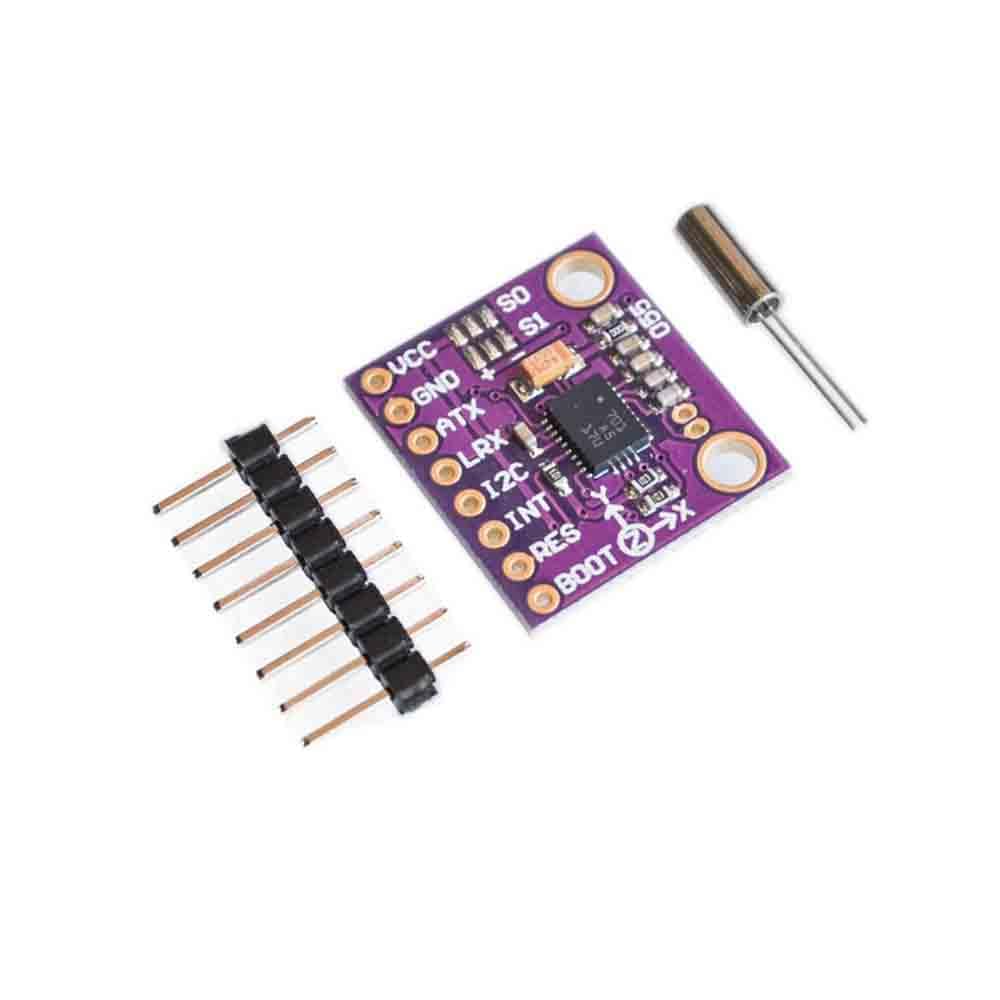

MCU-055 BNO055 9DOF 9axis gesture sensor module

https://www.hub360.cc/web/image/product.template/16983/image_1920?unique=d4f4b80
(0 review)

₦ 40,700.00 40700.0 NGN ₦ 40,700.00

₦ 40,700.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.

Contact Us
The MCU-055 BNO055 is a high-precision 9-axis absolute orientation sensor module featuring an integrated 32-bit ARM Cortex-M0+ MCU and onboard sensor fusion software. This intelligent System-in-Package (SiP) combines a 3-axis accelerometer, gyroscope, and magnetometer with a microcontroller running Bosch Sensortec’s proprietary fusion algorithm, delivering plug-and-play motion sensing for advanced applications.

Key Features

  • All-in-one 9-axis sensor: Accelerometer, Gyroscope, and Magnetometer

  • Sensor fusion and data processing handled internally—no extra code required

  • Supports both I2C and UART interfaces, including HID-I2C protocol

  • Multiple selectable ranges for gyroscope and accelerometer

  • Compact 28-pin LGA package with low power consumption modes

  • Factory-loaded Bosch Sensortec firmware ensures accuracy and stability

Technical Specifications

  • Accelerometer:

    • 14-bit resolution

    • ±2g/±4g/±8g/±16g selectable range

  • Gyroscope:

    • 16-bit resolution

    • ±125/250/500/1000/2000°/s selectable range

  • Magnetometer: 3-axis geomagnetic sensor

  • MCU: 32-bit ARM Cortex-M0+

  • Interfaces: I2C, UART (supports HID-I2C)

  • Firmware Version: 0.3.0.4

  • Operating Voltage: 1.8V–3.6V

  • Communication Voltage Level: Typically 3.3V

  • Power Modes: Normal, Low Power, Suspend

  • Operating Temperature: -40°C to +85°C

  • Package Size: 3.8mm × 5.2mm × 1.1mm

Applications

  • Wearables (fitness tracking, smart clothing)

  • Drone/UAV stabilization and navigation

  • Robotics: motion control and SLAM systems

  • AR/VR headsets and gesture-based interfaces

  • Gaming and simulation head tracking

  • Automotive navigation and driver assistance

  • IoT and smart environments requiring motion awareness
