AS5600 magnetic encoder

https://www.hub360.cc/web/image/product.template/16985/image_1920?unique=d4f4b80
(0 review)

₦ 4,400.00 4400.0 NGN ₦ 4,400.00

₦ 4,400.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.

Contact Us

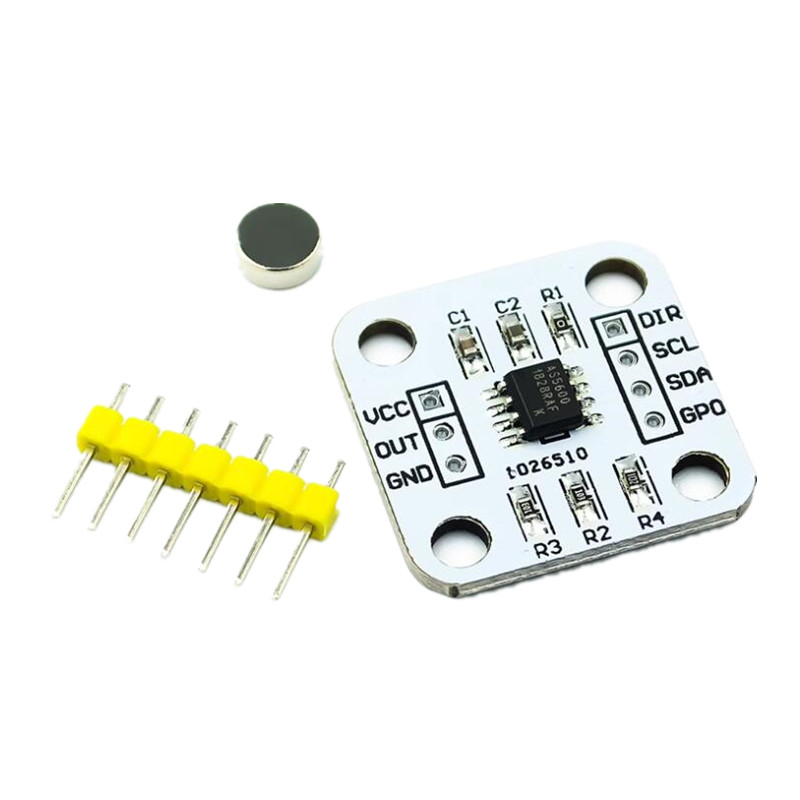

The AS5600 is a 12-bit contactless magnetic rotary encoder sensor designed for precise angular position detection. It detects the rotation of a magnetic field (typically from a diametrically magnetized magnet) and outputs either analog voltage, PWM, or communicates over I²C. With high accuracy, low power consumption, and simple integration, it's ideal for motor control, robotics, position tracking, and automated systems.

Key Features

  • High-resolution 12-bit angular sensing (0–360°)

  • Contactless magnetic sensing—no mechanical wear

  • Supports multiple output modes:

    • Analog voltage

    • PWM signal

    • I²C digital communication

  • Configurable direction pin (DIR) to set CW/CCW logic

  • Low-power operation, suitable for battery-powered designs

  • Compact size for tight enclosures

Technical Specifications

  • Resolution: 12-bit (4096 positions per rotation)

  • Output Interfaces:

    • PWM

    • Analog voltage

    • I²C (via SCL & SDA)

  • Supply Voltage: 3.3V

  • DIR Pin Logic:

    • GND = Increasing angle values in CW direction

    • VCC = Increasing values in CCW direction

  • GPO Pin: Mode selection (Low = Programming mode B)

  • Physical Dimensions: 0.91 in × 0.91 in × 0.91 in

Applications

  • Rotary encoders for motors and knobs

  • Precision servo and stepper motor control

  • Position feedback in robotics

  • Angle sensors for automation systems

  • Contactless potentiometer replacements

  • DIY CNC and 3D printer feedback systems
