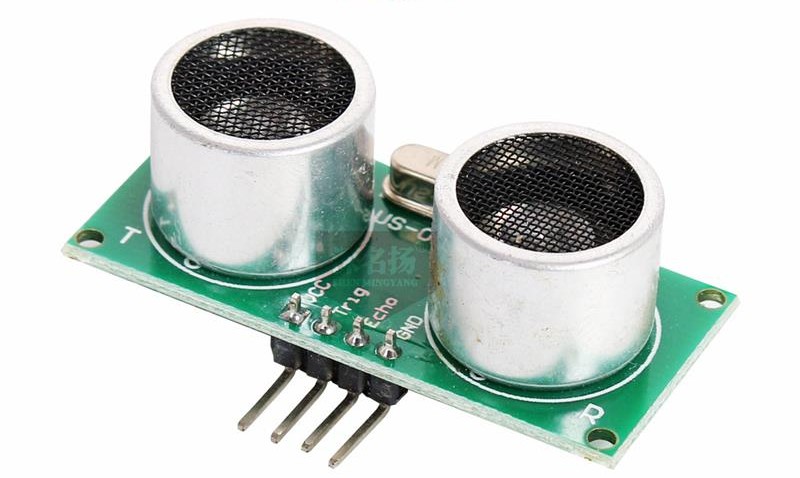

US-016 analog voltage ultrasonic sensor
The US-016 is a versatile ultrasonic distance sensor that provides both analog voltage and digital output, making it ideal for real-time distance measurement in robotics, automation, and embedded systems. Its analog voltage output is directly proportional to the measured distance, allowing for flexible integration with ADC-equipped microcontrollers.
Key Features:
- Dual Output Modes: Analog voltage and digital pulse output
- Real-Time Analog Feedback: Voltage varies with measured distance
- Long Detection Range: Up to 400 cm with high stability
- Simple Interfacing: Works with ADC and digital input pins
- Compact Design: Suitable for space-limited applications
- Low Power Consumption: Efficient for embedded use
- Plug-and-Play: Minimal setup required for distance sensing
- Model: US-016
- Measuring Range: 2 cm to 400 cm
- Analog Output Voltage: 0V to ~3.3V proportional to distance
- Digital Output: Echo pulse (similar to HC-SR04)
- Operating Voltage: 3V – 5.5V
- Accuracy: ±1 cm
- Current Consumption: <15 mA
- Trigger Signal: ≥10µs HIGH pulse
- Response Time: <50 ms
- Interface Pins: VCC, GND, TRIG, ECHO, AN (Analog Out)
- Obstacle detection and avoidance
- Smart bins and proximity sensing
- Distance-based automation systems
- DIY robotics and rangefinding
- Water level monitoring
- Real-time analog distance feedback for analog meters or ADCs
