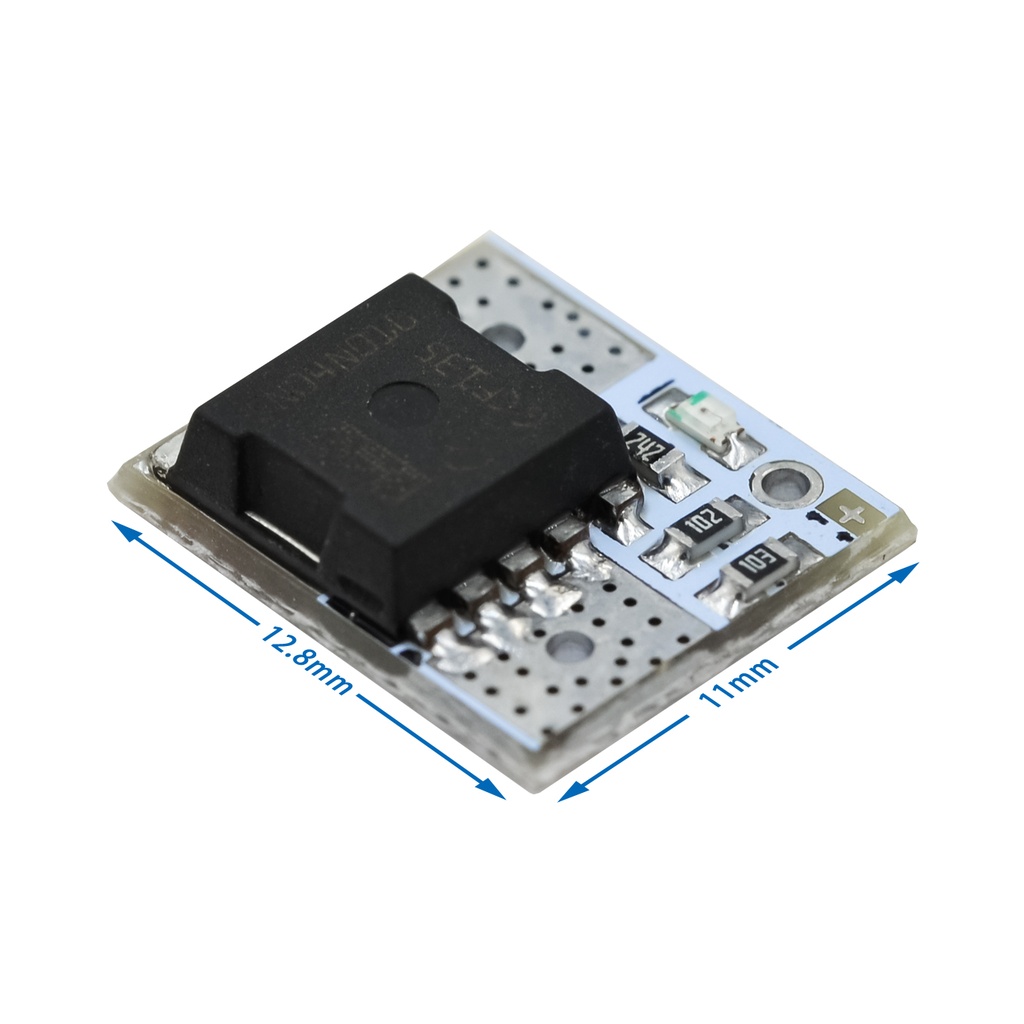

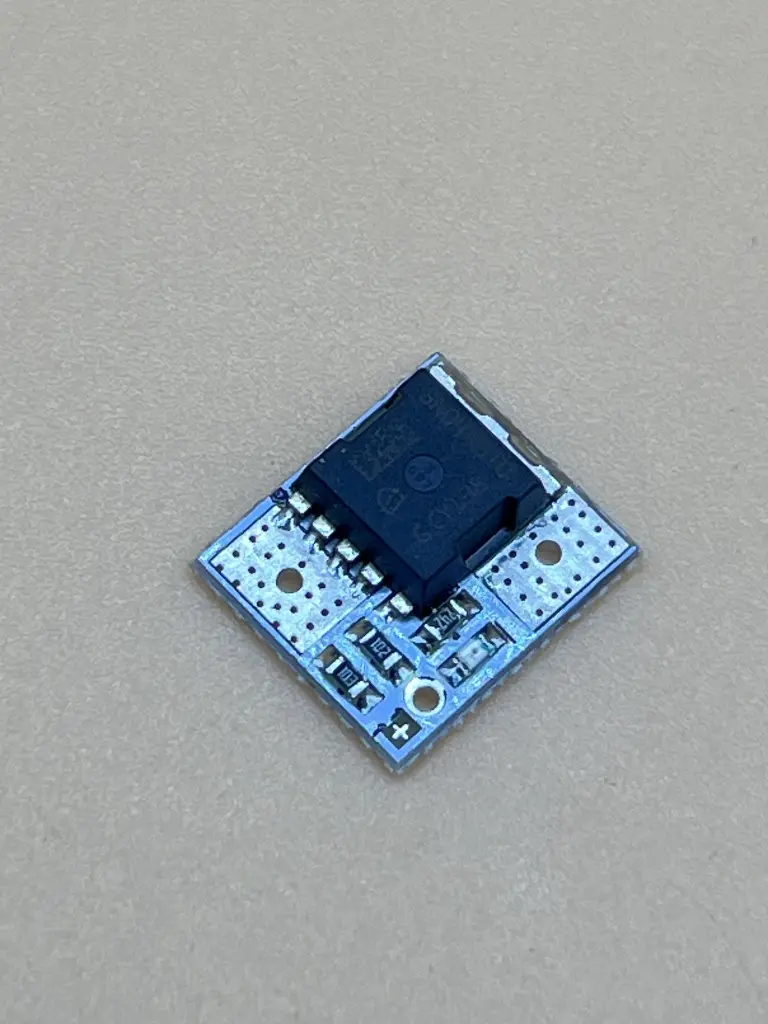

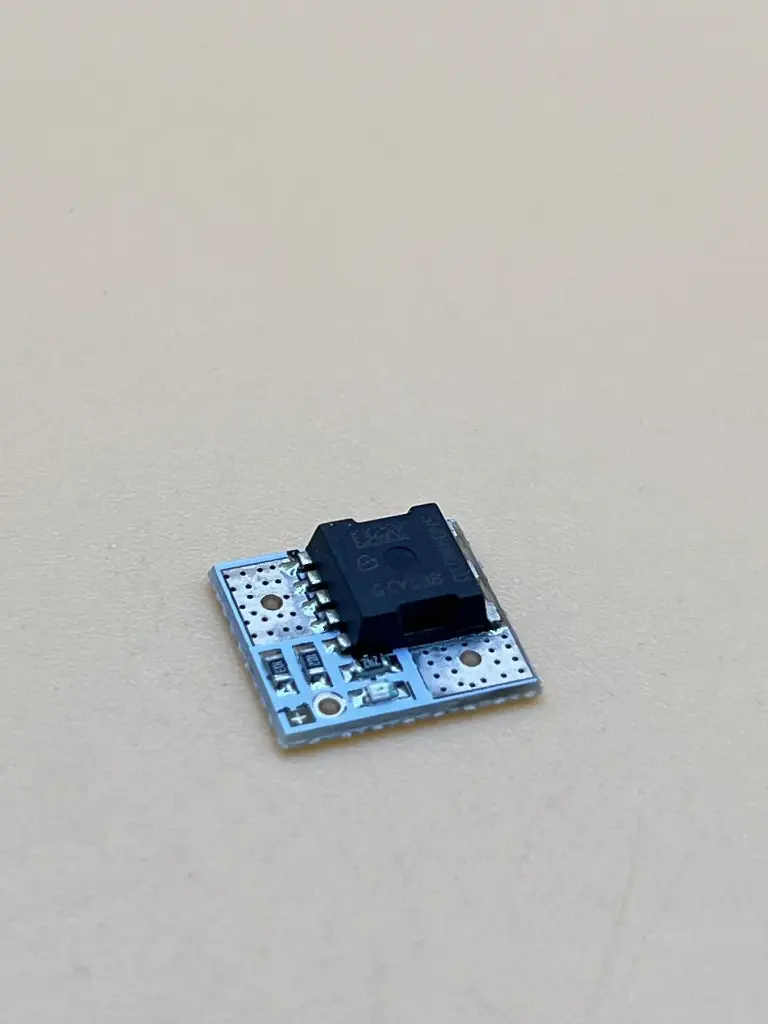

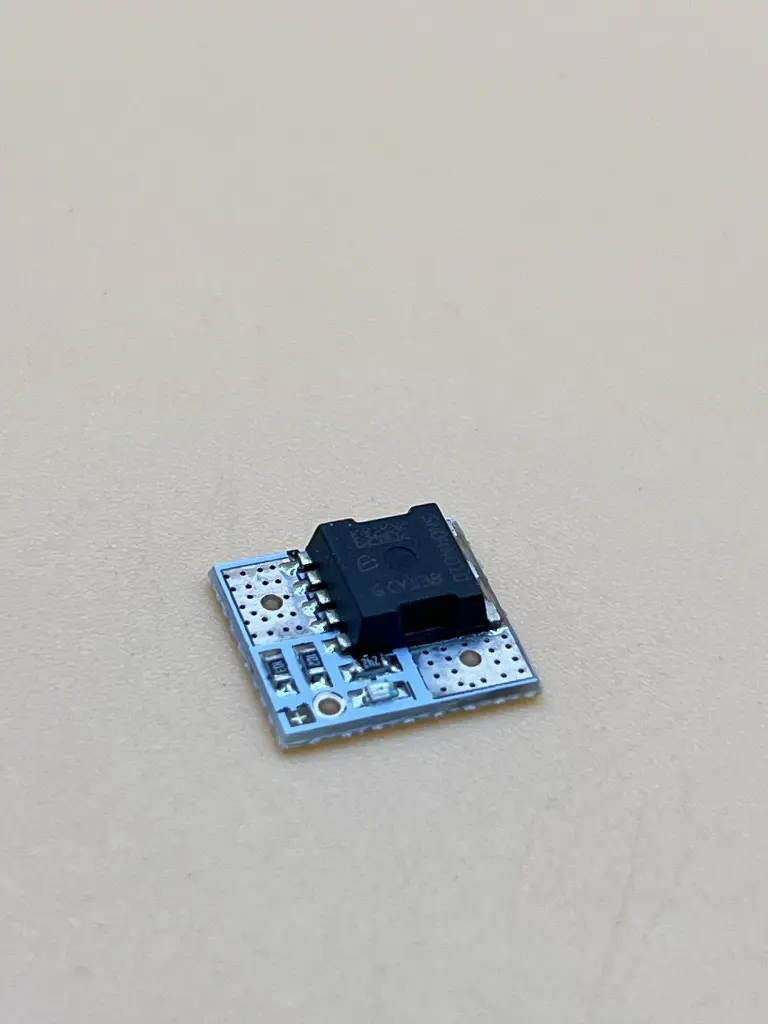

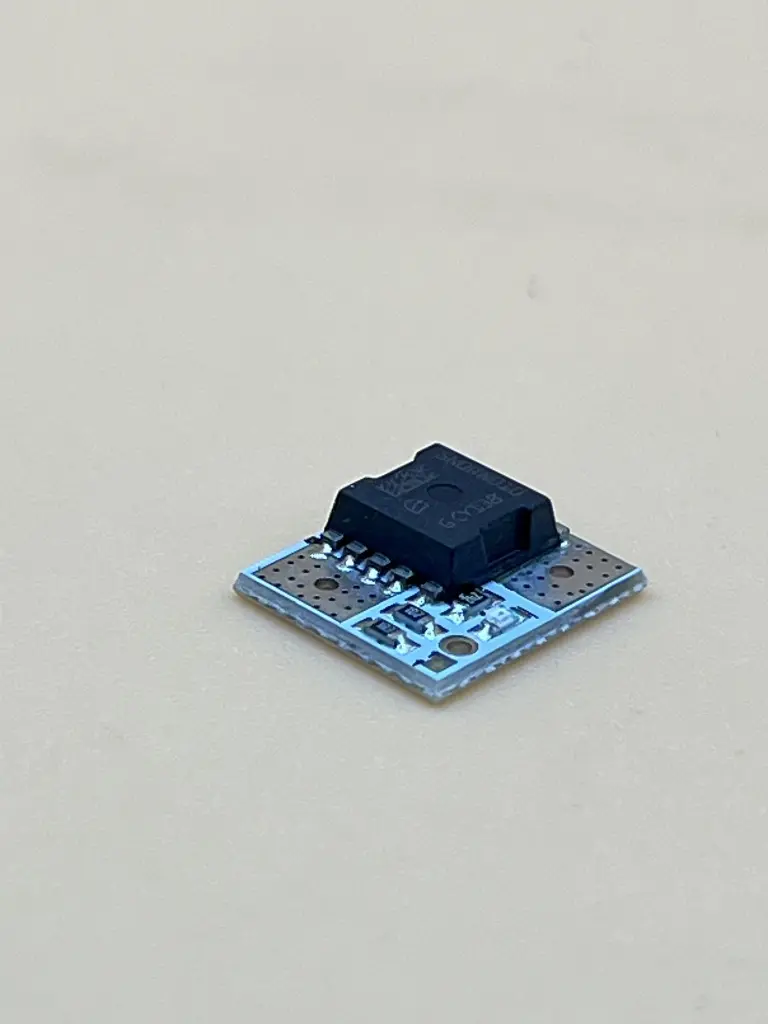

200A 40V high Power Mosfet switch board
The 200A High Power MOSFET Switch Board is a robust, high-current switching module capable of handling up to 200A at 40V DC. Designed for powerful load switching with low loss, it features heavy copper traces, fast switching speed, and logic-level control. ideal for large motors, battery packs, and high-power automation systems.
Key Features:
- Ultra-High Current: Switches loads up to 200A
- High Voltage Support: Operates up to 40V DC
- Logic-Level Triggering: 3.3V/5V compatible control input
- Low RDS(on): Minimal heat and voltage drop across MOSFET
- Fast Switching: Suitable for PWM speed or power control
- Industrial-Grade Build: Thick PCB, heavy-duty terminals
- Overcurrent Tolerance: Handles high startup surges
- Model: 200A MOSFET Power Switch Board
- Operating Voltage: 6V – 40V DC
- Max Load Current: 200A (with appropriate heat dissipation)
- Control Signal Voltage: 3.3V / 5V logic compatible
- MOSFET Type: N-channel (varies by board, e.g., IRF1404, AOT7N60)
- Trigger Interface: 3-pin (VCC, GND, IN)
- Switching Mode: Fully ON/OFF or PWM-controlled
- Cooling: Passive heatsink (add fan for heavy loads)
- Board Size: Varies (typically ~75 mm × 50 mm)
- Electric vehicle motor control
- High-power battery switching
- Solar panel and inverter systems
- High-current LED or heating elements
- RC hobby and industrial automation
- Smart load control in energy systems
