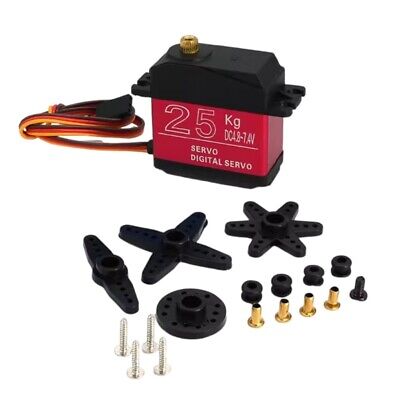

25KG 180 degrees metal gear digital servo
The 25KG 180° Metal Gear Digital Servo is a high-torque, heavy-duty servo motor designed for robotics, RC vehicles, and mechanical control systems. With durable metal gears, digital precision, and wide-angle rotation, it delivers reliable performance under high-load conditions.
Key Features:
- High Torque Output: Delivers up to 25 kg·cm torque
- 180° Rotation: Suitable for wide-angle mechanical control
- All-Metal Gears: Ensures strength, durability, and long life
- Digital Control: High precision and responsive movement
- Dual Ball Bearings: Smooth operation and reduced wear
- Aluminum Case: Improved heat dissipation and strength
- Universal PWM Control: Compatible with standard servo libraries
- Model: 25KG Digital Servo
- Torque: 25 kg·cm @ 6.8V (approx.)
- Rotation Range: 0° to 180° (PWM-controlled)
- Operating Voltage: 4.8V – 6.8V
- Speed: ~0.12 sec/60° @ 6.8V
- Gear Type: Full metal gears
- Motor Type: Core motor
- Bearing Type: Dual ball bearings
- Signal: PWM (50 Hz standard)
- Connector Type: 3-pin (Signal, VCC, GND)
- Dimensions: ~40.5 mm × 20 mm × 40.5 mm
- Weight: ~60 g
- Robotic arms and joints
- RC cars, boats, and planes
- Gimbal and camera pan/tilt systems
- Mechanical actuators in automation
- Servo-based CNC or DIY motion control projects
