Description

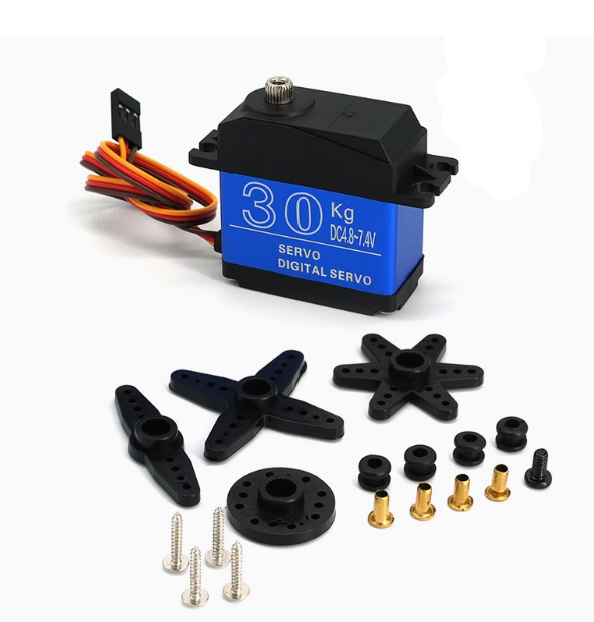

The 30KG 180° Metal Gear Digital Servo is a high-torque, precision-controlled actuator built for demanding robotics and RC applications. Featuring full metal gears, a durable aluminum case, and digital pulse-width modulation (PWM) control, it offers stable performance under heavy load conditions.
Key Features
- Extra High Torque: Up to 30 kg·cm torque at 6.8V
- ·180° Rotation: Wide-range movement for mechanical control
- · Full Metal Geartrain: Enhanced durability and strength
- · Digital Circuit: Accurate positioning and response
- · Aluminum Alloy Case: Improves cooling and structural integrity
- · Dual Bearings: Smooth, wear-resistant shaft rotation
- · Standard PWM Interface: Compatible with most servo controllers
Specification
- · Model: 30KG Digital Servo
- · Torque: Up to 30 kg·cm @ 6.8V
- · Operating Voltage: 4.8V – 7.4V
- · Rotation Range: 0° to 180°
- · Speed: ~0.10 – 0.14 sec/60° (depending on voltage)
- · Motor Type: High-efficiency DC core motor
- · Gears: Full metal gears
- · Bearings: Dual ball bearing system
- · Signal: PWM (50 Hz standard)
- · Connector: 3-pin (Signal, VCC, GND)
- · Dimensions: ~40.5 mm × 20 mm × 40.5 mm
- · Weight: ~65 g
Application
- · Robotic arms and heavy-duty joints
- · Large RC cars, boats, or aircraft
- · Pan/tilt camera systems
- · CNC automation with servo-based actuation
- · High-load control systems in DIY or industrial setups
