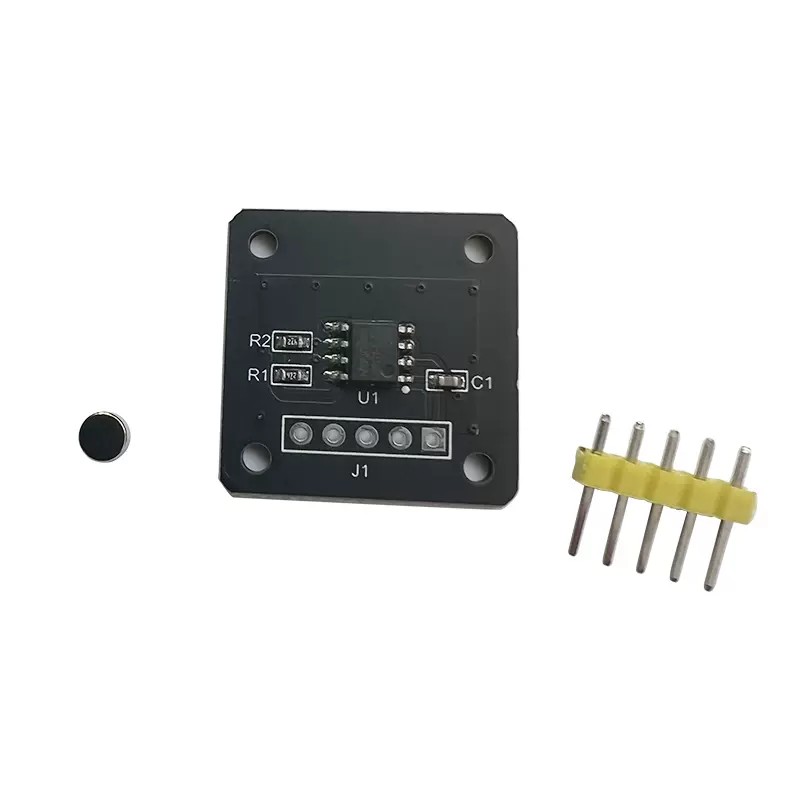

MT6701 Magnetic Encoder

https://www.hub360.cc/web/image/product.template/17055/image_1920?unique=d4f4b80
(0 review)

₦ 6,600.00 6600.0 NGN ₦ 6,600.00

₦ 6,600.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.

Contact Us
The MT6701 is a next-generation magnetic angle encoder chip utilizing differential Hall induction technology. It detects magnetic field components perpendicular to the chip surface, providing accurate angle measurements from 0° to 360°. As a versatile encoder, it supports multiple output formats including ABZ/UVW incremental, analog/PWM absolute, and 14-bit digital angle output via I²C/SSI interfaces.

Product Features

  • Differential Hall-based absolute angle sensing from 0° to 360°

  • Operating voltage: 3.3 V – 5.0 V

  • Operating temperature: –40 °C to +125 °C

  • Linearity deviation: <1°, typically <1.5° across temperature range

  • High-speed support: System delay as low as 5 μs; supports speeds up to 55,000 RPM

  • Interfaces: I²C/SSI for 14-bit digital angle data

  • ABZ Incremental output: Supports 1 to 1024 resolution lines

  • UVW Incremental output: Supports polarity configurations from 1 to 16

  • Analog/PWM output: 12-bit PWM or analog via 12-bit DAC

  • Button detection output: Detects press action via magnetic spacing change

  • Built-in EEPROM: >1000 programming cycles supported

Applications

  • Precision rotary encoders

  • Motor position feedback (BLDC, stepper)

  • Robotics and automation systems

  • User input knobs (rotation + push)

  • Industrial control and sensing
