Description

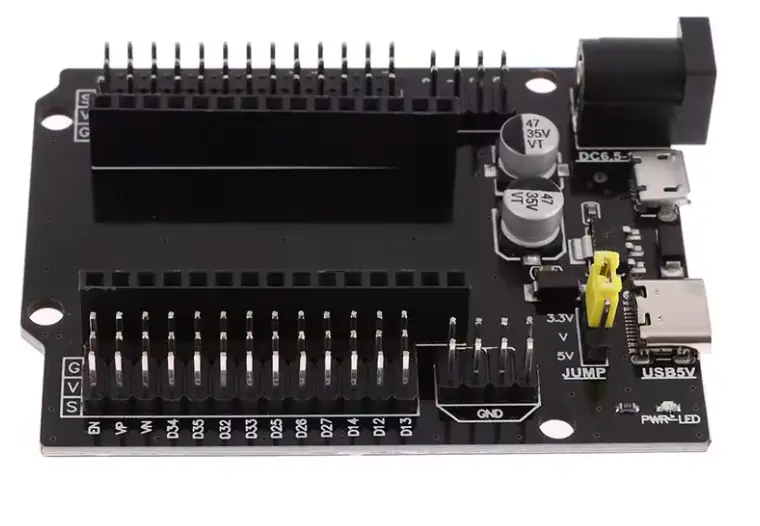

This ESP32 Power Board Adapter Base is designed to make prototyping and development with ESP32 Devkit boards easier and more reliable. It provides multiple power input options (USB Type-C, Micro-USB, and DC barrel jack) and includes onboard voltage regulation to ensure stable 5V/3.3V output. With pre-arranged pin headers, it allows quick connection of ESP32 (30-pin or 38-pin) boards and simplifies wiring for sensors, actuators, and other peripherals
Key Features
- Compatible with ESP32 Devkit (30-pin & 38-pin) boards.
- Multiple Power Input Options: USB Type-C, Micro-USB, or 6.5–16V DC barrel jack.
- Stable Power Regulation: Provides 5V & 3.3V outputs for ESP32 and external modules.
- Convenient Expansion: Pre-soldered female headers for direct ESP32 placement.
- Breadboard-Friendly Layout: Easy prototyping without messy wiring.
- Extra Capacitors for power stability when running motors, sensors, or wireless modules.
Specification
Input Voltage:
- USB Type-C: 5V
- Micro-USB: 5V
- DC Barrel Jack: 6.5V – 16V
Output Voltage: 5V & 3.3V regulated
Compatible Modules: ESP32 Devkit V1 (30-pin)
Onboard Components:
- Voltage regulators
- Power capacitors
- Power LED indicator
- Jumper for 5V/3.3V selection
Application
- Stable power supply base for ESP32 projects
- IoT prototyping and testing
- Robotics and automation projects
- Sensor interfacing and expansion
- Educational and research applications
