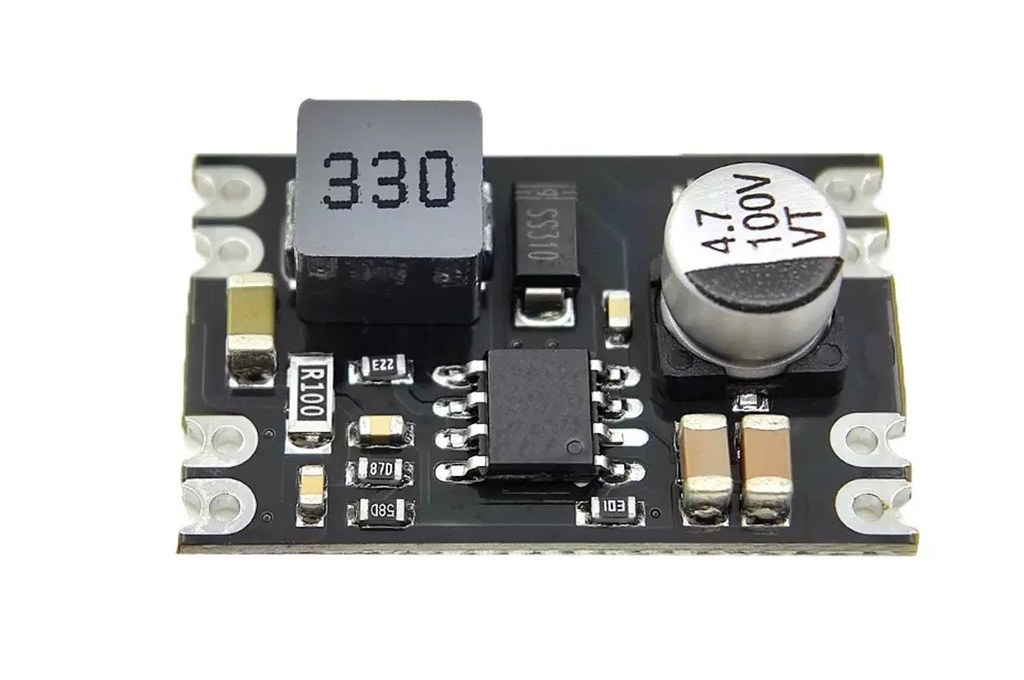

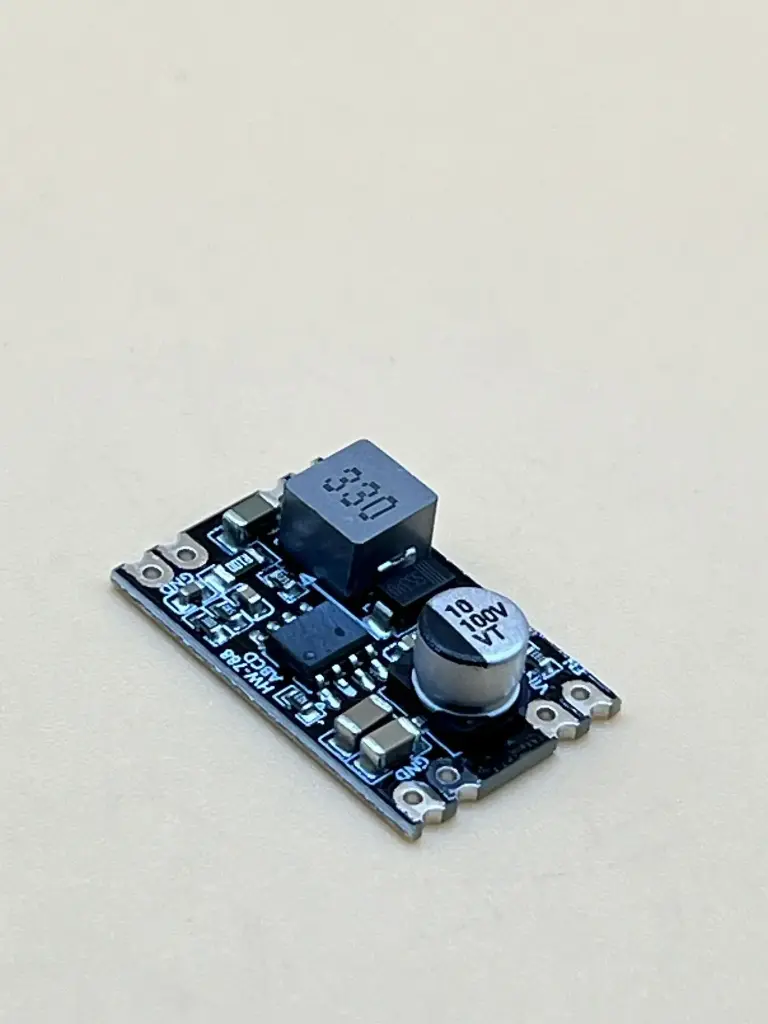

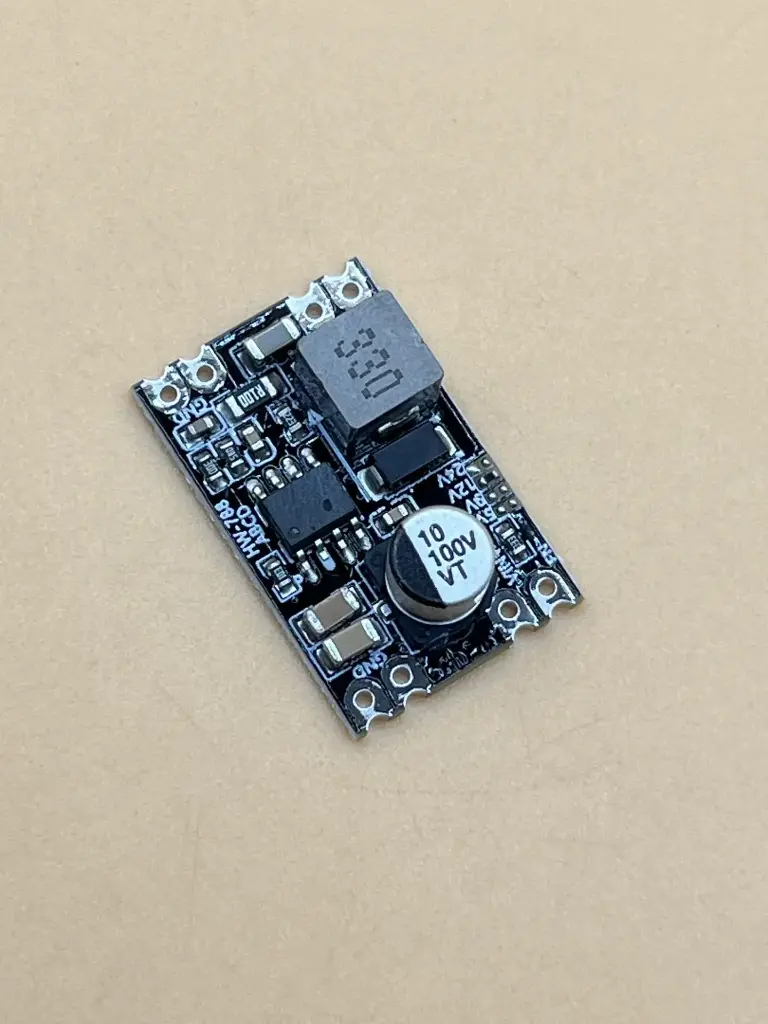

The DC-DC Buck Module (7V–100V Input, Fixed 12V Output) is a high-efficiency, compact step-down power supply ideal for embedded systems and power-sensitive applications. With a peak current capacity of 3A and up to 96% efficiency, it provides stable 12V output from a wide range of higher voltage sources, making it ideal for automotive, industrial, and communication equipment.

Key Features:

  • Wide Voltage Support: Accepts up to 100V input for versatile industrial and field power supply use

  • Efficient Step-Down Regulation: Delivers clean, regulated 12V DC output

  • Built-in Protections: Includes thermal and overload auto-shutdown to prevent damage

  • Cool Operation: Passive cooling with ultra-low heat generation

  • Compact & Mountable: Half-hole PCB design for direct mounting on custom boards

  • Minimal Standby Power: 1mA no-load current makes it ideal for battery-powered applications

  • Plug-and-Play Integration: Pre-configured output voltage, solder-ready pads

Technical Specifications:

  • Input Voltage Range: 7V ~ 100V DC

  • Fixed Output Voltage Options: 12V

  • Output Current: 2A continuous, 3A peak

  • Output Accuracy: ±0.1V

  • Conversion Efficiency: Up to 96%

  • Output Ripple: <30mV

  • No-Load Current: 1mA

  • Operating Temperature: -40°C ~ +125°C

  • Operating Humidity: 20% ~ 90%

  • Dimensions: 25.5 × 16.5 × 7 mm (L × W × H)

  • PCB Layers: 2-layer board

  • Frequency: 1MHz switching

  • Shutdown Feature: Yes

  • Installation Method: Solder pad or patch mount

  • Isolation: Non-isolated

  • Heat Dissipation: Passive (natural convection)

  • Service Life: 35,000 hours (at rated load)

Applications:

  • Industrial Power Supplies: For PLCs, sensors, and remote control modules

  • Automotive Electronics: Regulate 12V for car systems from higher battery sources

  • Communication Equipment: Use in base stations, repeaters, and radio transmitters

  • DIY Electronics & Robotics: Compact power regulation for controllers and sensors

  • Solar & Battery Systems: Clean voltage drop from panels or battery packs
