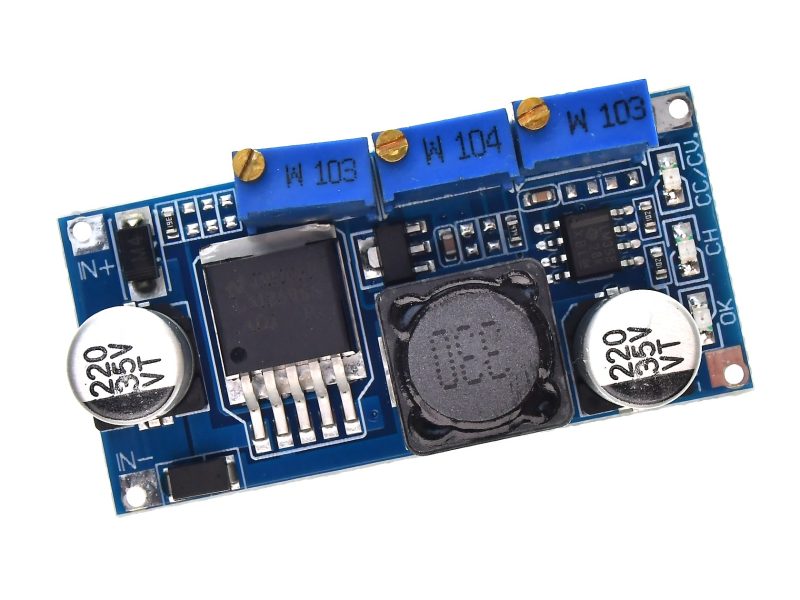

LM2596 contant Current and voltage module

https://www.hub360.cc/web/image/product.template/17109/image_1920?unique=e141ac1
(0 review)

₦ 3,200.00 3200.0 NGN ₦ 3,200.00

₦ 3,200.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.

Contact Us
The LM2596 Adjustable Buck Converter Module is a versatile step-down voltage regulator with constant voltage (CV) and constant current (CC) capabilities. It’s designed for efficiently stepping down higher voltages (up to 40V) to a lower, stable output voltage (as low as 1.25V), making it ideal for applications such as charging lithium batteries, driving high-power LEDs, and controlling DC motor speed.

Key Features:

  • Dual-Mode Control: Adjustable constant voltage and constant current modes

  • High Compatibility: Perfect for charging lithium-ion, LiFePO4, and NiMH/NiCd batteries

  • LED Driver Ready: Ideal for high-power LED constant current drive

  • Versatile Inputs: Compatible with a wide range of sources including solar panels and wind turbines

  • High Efficiency: Up to 92% conversion efficiency with low output ripple

  • Compact & Reliable: Small form factor with solid build quality

Specifications:

  • Input Voltage: 3.2V – 40V DC

  • Output Voltage: 1.25V – 35V DC (adjustable)

  • Output Current: Up to 3A (with heat dissipation)

  • Conversion Efficiency: Up to 92%

  • Switching Frequency: 65kHz

  • Output Ripple: <30mV

  • Operating Temperature: -45°C to +85°C

  • Module Dimensions: 43mm × 21mm × 14mm (L × W × H)

Applications:

  • Battery Charging: Lithium, LiFePO4, NiMH/NiCd, and lead-acid packs

  • LED Drivers: Drive high-power LEDs with adjustable current

  • DC Motor Control: Use for speed regulation in small DC motors

  • Benchtop Power Supply: Create a basic adjustable DC supply for hobby electronics

  • Renewable Energy: Voltage regulation for solar and wind-powered systems

  • Lighting Control: Light dimming for DIY lamp setups

  • General Voltage Step-Down: Efficiently reduce voltage for microcontrollers and sensors
