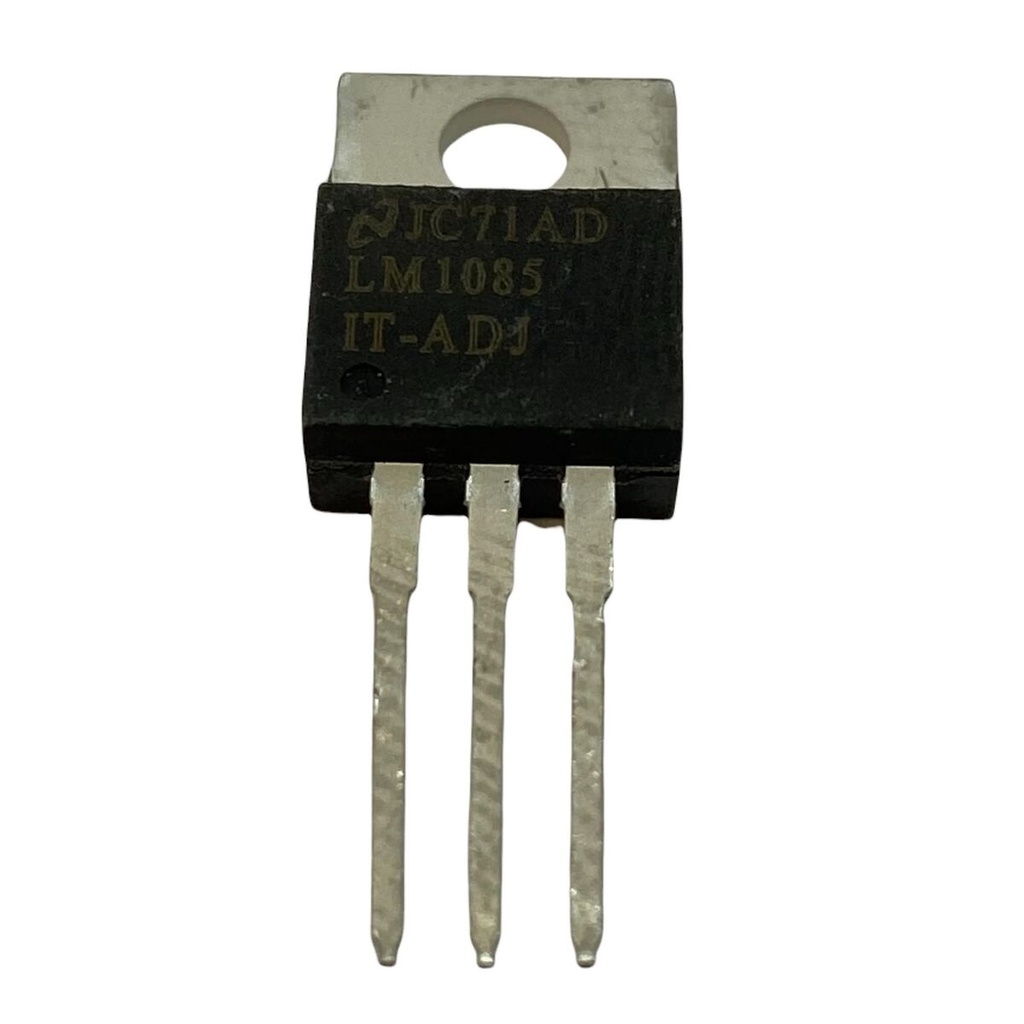

LM1085IT-ADJ voltage regulator
The LM1085IT-ADJ is an adjustable low dropout (LDO) voltage regulator IC capable of providing a variable output voltage based on external resistor settings. It is designed to regulate an input voltage (typically higher than the desired output voltage) down to a stable output voltage, making it versatile for various applications where precise voltage regulation is required.
Key Features:
- Adjustable output voltage
- Low dropout voltage: typically 1.1V at 3A load
- Output current: up to 3A
- Thermal shutdown and current limit protection
- Fast transient response
- High PSRR (Power Supply Rejection Ratio)
- Wide operating temperature range
- Available in TO-220 and TO-263 packages
- Output Voltage Range: Adjustable via external resistors
- Input Voltage Range: Typically 6.5V to 20V (up to 25V max)
- Dropout Voltage: Typically 1.1V at 3A load
- Output Current: Up to 3A
- Line Regulation: Typically 0.02%/V
- Load Regulation: Typically 0.4%
- Temperature Range: -40°C to +125°C
- Package Types: TO-220, TO-263
- Adjustable power supplies
- Battery chargers
- Test and measurement equipment
- Automotive electronics
- Industrial control systems
