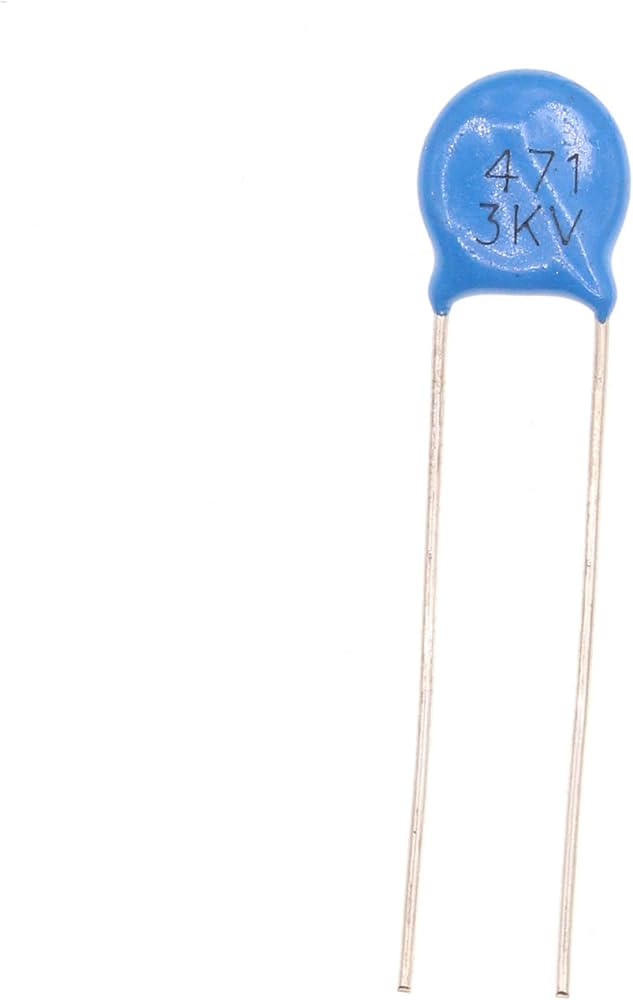

471 470PF 3KV ceramic capacitor

Description: The 471 470PF 3KV ceramic capacitor is a high-voltage, general-purpose capacitor suitable for a wide range of electronic applications. With a capacitance value of 470 picofarads (pF) and a voltage rating of 3000 volts (3KV), this capacitor is ideal for use in circuits where high voltage handling and stability are required. It is commonly used in power supplies, high-voltage multipliers, and RF applications. Key Features:

• Capacitance: 470 picofarads (pF)
• Voltage Rating: 3000 volts (3KV)
• Dielectric Type: Ceramic
• High voltage stability and reliability
• Low dissipation factor
• Compact size for easy integration
• RoHS compliant

Technical Specifications:

• Capacitance Tolerance: ±10% or ±20% (depending on the specific model)
• Temperature Coefficient: NP0 (C0G) for stable performance across a wide temperature range
• Operating Temperature Range: -55°C to +125°C
• Insulation Resistance: High, ensuring minimal leakage current
• Lead Configuration: Radial leads for through-hole mounting
• Package Size: Commonly available in various lead spacing and body sizes

Applications:

• High Voltage Power Supplies
• High Voltage Multipliers
• RF Circuits
• Snubber Circuits
• Coupling and Decoupling Applications
• Industrial and Medical Equipment

Datasheet: For detailed technical information, refer to the 471 470PF 3KV Ceramic Capacitor Datasheet
