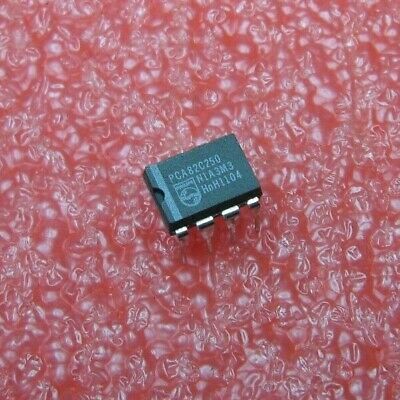

PCA82C250N driver transceiver
Description:
The PCA82C250N is a high-speed CAN (Controller Area Network) transceiver that provides the interface between a CAN controller and the physical bus. It is designed for high-speed CAN communication and is suitable for use in automotive, industrial, and other applications requiring robust communication over long distances and in noisy environments.
Key Features:
- High-speed CAN transceiver for data rates up to 1 Mbps
- Fully compatible with the ISO 11898 standard
- Differential receiver with high noise immunity
- Thermal protection and short-circuit protection
- Low-power standby mode
- Transmit data (TxD) dominant timeout function
- Bus pins protected against transients in an automotive environment
- Fully compatible with 3.3V and 5V logic levels
- Package Type: DIP-8, SO-8
- Supply Voltage Range: 4.75V to 5.25V
- CANH, CANL Voltage Range: -36V to +36V
- Operating Temperature Range: -40°C to +125°C
- Data Rate: Up to 1 Mbps
- Standby Current: 10 µA (typical)
- Dimensions (DIP-8): 10.16 mm x 6.35 mm x 3.3 mm
- Weight: 0.4 g
- Automotive: Used in automotive systems for robust CAN communication between ECUs.
- Industrial Automation: Facilitates communication in industrial control systems and automation.
- Medical Equipment: Provides reliable data communication in medical devices and systems.
- Building Automation: Used in building management systems for monitoring and control.
- Robotics: Enables communication in robotic control systems and networks.
