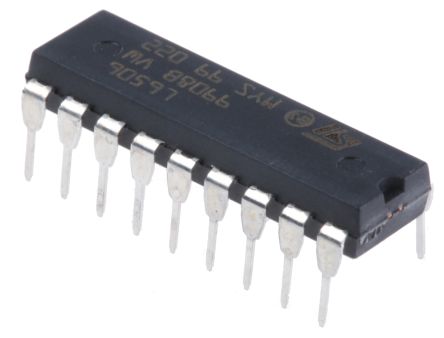

L6506 stepper motor driver
Description:
The L6506 is a monolithic stepper motor driver IC designed for driving bipolar stepper motors in various applications. It integrates the control logic and power drivers into a single package, simplifying the design and reducing the component count for stepper motor control systems. The L6506 features current control and protection functions, ensuring efficient and reliable motor operation.
Key Features:
- Monolithic IC for driving bipolar stepper motors
- Dual full-bridge power outputs
- PWM current control for precise motor control
- Overcurrent protection
- Thermal shutdown protection
- Enable and direction control inputs
- High efficiency and low power dissipation
- Compatible with microcontroller or logic control inputs
- Package Type: DIP-16, SO-16
- Supply Voltage: 10V to 46V
- Output Current: Up to 1.5A per phase
- Operating Temperature Range: -20°C to +85°C
- Input Logic Levels: TTL/CMOS compatible
- Dimensions: Compact design suitable for various applications
- Industrial Automation
- Robotics
- CNC Machines
- Printers and Plotters
- Automotive Applications
- Home Appliances
