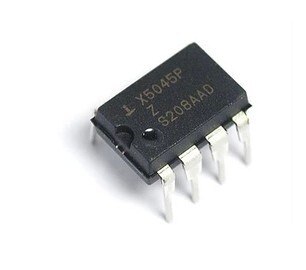

X5045P monitor chip
Description:
The X5045P is a 4K-bit (512 x 8) EEPROM with an integrated CPU supervisor, designed to monitor and control the status of microcontroller systems. This device combines EEPROM memory with supervisory functions such as a watchdog timer, power-fail reset, and manual reset capability, making it ideal for embedded systems requiring reliable memory storage and system stability.
Key Features:
- 4K-bit (512 x 8) EEPROM memory
- Integrated CPU supervisor with watchdog timer
- Power-fail reset
- Manual reset input
- Low power consumption
- 2-wire serial interface (I2C)
- High endurance: 1,000,000 write cycles
- Data retention: 100 years
- Wide operating voltage range: 2.7V to 5.5V
- Package Type: PDIP-8
- Memory Capacity: 4K-bit (512 x 8)
- Supply Voltage Range: 2.7V to 5.5V
- Operating Temperature Range: -40°C to +85°C
- Standby Current: 1 µA (typical)
- Active Current: 400 µA (typical)
- Write Time: 5 ms (maximum)
- Dimensions: 9.81 mm x 6.35 mm x 4.57 mm
- Weight: 0.38 g
- Embedded Systems: Provides reliable memory storage and system monitoring for microcontroller-based systems.
- Industrial Control: Ensures system stability and data integrity in industrial automation and control systems.
- Consumer Electronics: Used in various consumer electronic devices requiring EEPROM memory and system supervision.
- Automotive: Provides memory storage and system monitoring for automotive electronics.
- Medical Devices: Ensures reliable operation and data storage in medical equipment.
