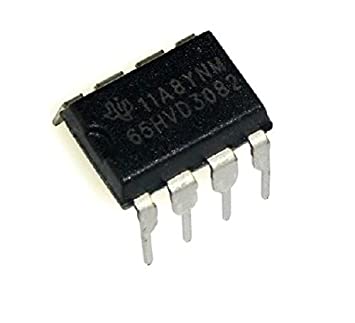

The SN65HVD3082 is a high-performance RS-485 transceiver manufactured by Texas Instruments. It is designed for robust communication in industrial and commercial environments. This transceiver features a low-power consumption mode, high-speed data transmission, and enhanced noise immunity, making it suitable for various applications requiring reliable and efficient data communication over long distances.
Key Features:
- Transceiver Type: RS-485
- Supply Voltage: 3.3V to 5V
- Data Rate: Up to 20 Mbps
- Low Power Consumption: Features a low-power standby mode
- Enhanced Noise Immunity: Designed to operate in noisy industrial environments
- ESD Protection: High electrostatic discharge protection for robust performance
- Short-Circuit Protection: Protects the device from damage in fault conditions
- Wide Common-Mode Voltage Range: Ensures reliable communication over long distances
- Supply Voltage: 3.3V to 5V
- Data Rate: Up to 20 Mbps
- Input Voltage Range: -7V to 12V
- ESD Protection: ±15kV (HBM)
- Common-Mode Voltage Range: -7V to 12V
- Receiver Input Sensitivity: ±200mV
- Operating Temperature Range: -40°C to +85°C
- Package Type: SOIC (Small Outline Integrated Circuit)
- Industrial Automation: Used in communication networks for factory automation and process control.
- Building Automation: Ideal for HVAC systems, security systems, and lighting control.
- Energy Management: Suitable for smart grid applications, including meter reading and data collection.
- Telecommunications: Used in base stations and remote monitoring systems.
- Automotive Applications: Can be employed in automotive networking for data communication between control units.
