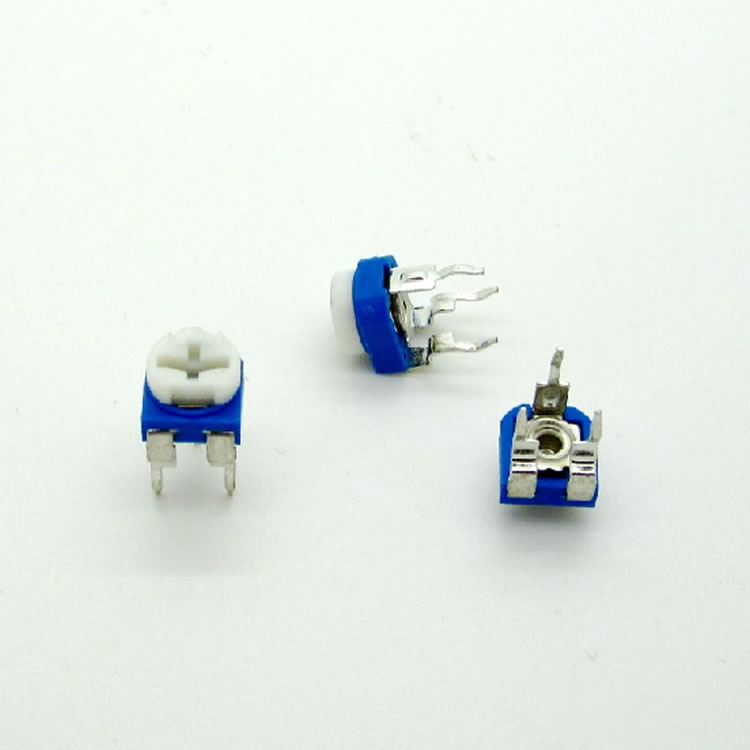

102 1K ohm Variable Resistor
The 1KΩ Variable Resistor, also known as a potentiometer, is an essential component for adjusting resistance in electronic circuits. It provides a variable resistance value up to 1 kilohm, allowing for fine-tuning of voltage and current levels. This resistor is commonly used in applications requiring precise control, such as volume adjustment, signal calibration, and other variable resistance needs.
Key Features:
- Resistance Range: 1KΩ (1,000Ω)
- Adjustable for precise control of resistance
- Available in rotary or linear adjustment types
- Can be found in through-hole or surface-mount packages
- Resistance Value: 1KΩ (1,000Ω)
- Tolerance: ±10%
- Power Rating: Typically 0.5W to 1W
- Adjustment Type: Rotary or linear
- Package Type: Through-holeÂ
- Audio volume control
- Signal level adjustment
- Calibration in measurement systems
- Fine-tuning in analog electronic circuits
- Integrate the potentiometer into the circuit according to design requirements.
- Adjust the resistance by rotating or sliding the control to achieve the desired resistance.
- Verify the circuit’s performance to ensure it meets operational specifications.
- Do not exceed the potentiometer's power rating to avoid overheating.
- Handle with care to prevent damage to the adjustment mechanism.
- Regular checks may be necessary to ensure accurate resistance values over time.
