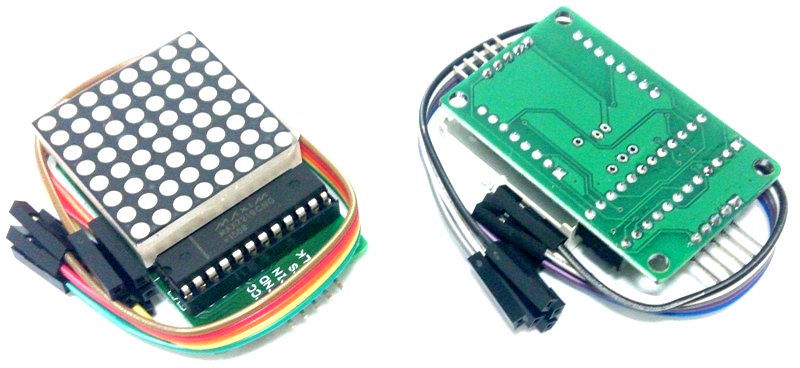

Dot Matrix module with Max7219
The Dot Matrix Module with Max7219 is a versatile and easy-to-use LED display module designed for various applications, including electronic signage, clocks, and message displays. The Max7219 driver IC allows for simple control of the 8x8 LED matrix, enabling scrolling text, animations, and other display effects with minimal effort. This module is ideal for hobbyists and developers looking to add visual output to their projects.
Key Features:
- Easy Control: Driven by the Max7219 IC, simplifying LED control
- High Brightness: 8x8 red LED matrix with high brightness and clarity
- Cascadable: Multiple modules can be daisy-chained for larger displays
- Low Power Consumption: Efficient power usage due to the Max7219 driver
- Flexible Display Options: Supports various display effects such as scrolling text and animations
- Compact Design: Small form factor suitable for a wide range of projects
- Matrix Size: 8x8 LEDs
- LED Color: Red
- Driver IC: Max7219
- Operating Voltage: 5V DC
- Communication Interface: SPI (Serial Peripheral Interface)
- Current Consumption: 320mA (maximum, all LEDs on)
- Module Dimensions: 32mm x 32mm x 12mm
- Electronic signage
- Clocks and timers
- Message displays
- Game displays
- Visual output for microcontroller projects
- Educational and DIY electronics projects
- Connect the VCC and GND pins to a 5V power supply.
- Connect the DIN, CS, and CLK pins to the corresponding pins on your microcontroller or development board.
- Use an appropriate library (e.g., the LedControl library for Arduino) to program the Max7219 and control the LED matrix.
- Create display patterns, scrolling text, or animations by sending commands to the Max7219.
- Ensure the operating voltage is within the specified range to avoid damage to the module.
- Handle the module with care to prevent static discharge and physical damage.
- Do not expose the module to moisture or extreme temperatures.
