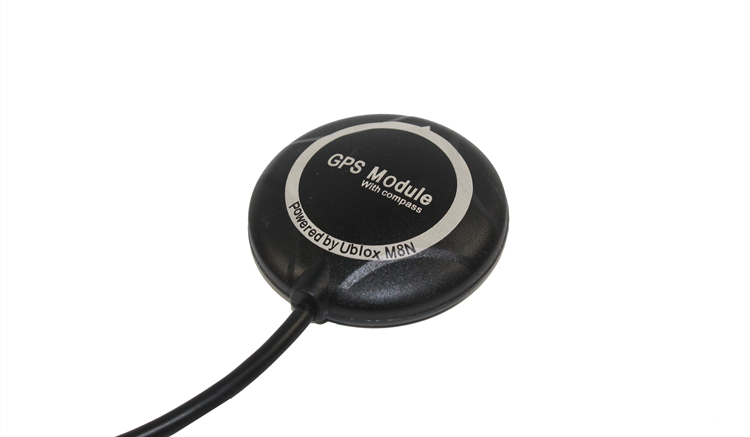

M8N GPS module with compass For PIXHAWK

The M8N GPS module with compass is designed for high-precision navigation in PIXHAWK flight control systems. Featuring the advanced Ublox Neo-M8N module, it provides reliable GPS data with industry-leading sensitivity and fast cold start times. It includes a built-in compass for enhanced orientation and positioning accuracy. Key Features:

• Ublox Neo-M8N module with high navigation sensitivity
• Quick cold starts in 26 seconds
• Low noise 3.3V regulator
• Includes fix indicator LEDs and a protective case
• Comes with a 26cm cable
• Compact size: 50mm diameter, 32 grams with case

Technical Specifications:

• GPS Module: Ublox Neo-M8N
• Navigation Sensitivity: –167 dBm
• Cold Start Time: 26 seconds
• Current Consumption: <150mA @ 5V
• Antenna: 25 x 25 x 4 mm ceramic patch
• Cable Length: 26 cm
• Dimensions: 50 mm diameter
• Weight: 32 grams

Applications: Used in PIXHAWK flight control systems for drones and other UAVs requiring precise GPS navigation. Usage: Connect the module to the PIXHAWK system via the included cable. Ensure proper calibration and positioning for optimal performance. Caution: Handle with care to avoid damage to the delicate components. Follow installation instructions carefully. Datasheet: Link to Datasheet
