Description

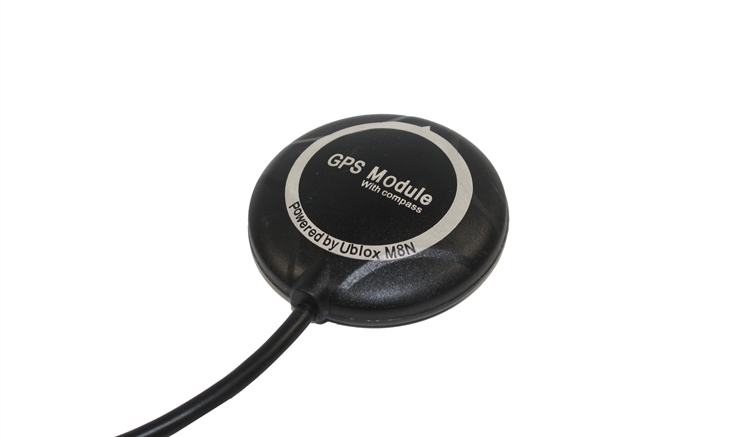

The M8N GPS Module with Compass is a high-precision navigation unit designed specifically for PIXHAWK flight control systems. Built around the advanced Ublox Neo-M8N receiver, this module delivers exceptional positioning performance with industry-leading sensitivity and fast satellite acquisition times. An integrated digital compass (typically HMC5883L or similar) provides accurate heading information for enhanced orientation and positioning .
Key Features
- Ublox Neo-M8N GNSS receiver supports concurrent reception of GPS/QZSS L1 C/A, GLONASS L10F, and BeiDou B1 for improved satellite availability and positioning reliability
- High navigation sensitivity of -167 dBm enables strong signal acquisition even in challenging environments
- Fast cold start time of approximately 26 seconds
- Built-in digital compass (integrated magnetometer) provides heading data to the flight controller
- Low noise 3.3V voltage regulator ensures clean power delivery to sensitive receiver components
- Includes fix indicator LEDs (typically blue) that flash to confirm satellite lock status
- Protective plastic housing shields the module from environmental exposure and electromagnetic interference
- Comes with a 26cm cable for flexible mounting options on drone frames
- Compact circular form factor (50mm diameter) with lightweight construction (32 grams with case)
Specifications
- GPS Module: Ublox Neo-M8N (72-channel u-blox M8 engine)
- Navigation Sensitivity: -167 dBm (tracking)
- Cold Start Time: 26 seconds (typical)
- Current Consumption: Less than 150mA at 5V DC
- Antenna Type: 25mm × 25mm × 4mm ceramic patch antenna with active circuitry
- Cable Length: 26 centimeters
- Dimensions: 50mm diameter (circular module)
- Weight: 32 grams (including protective case)
- Supported GNSS Systems: GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1 (concurrent reception)
- Update Rate: Up to 10Hz (position updates per second)
- Operating Voltage: 5V DC (with onboard 3.3V regulator)
- Compass Type: Magnetometer (HMC5883L or equivalent depending on batch)
Applications
The M8N GPS Module with Compass is used primarily in PIXHAWK flight control systems for drones and other UAVs requiring precise GPS navigation. It is compatible with PIXHAWK, PIXHAWK 2, PX4, APM (ArduPilot Mega), and similar autopilot systems . Applications include autonomous flight missions, waypoint navigation, return-to-home functions, loiter position holding, and geofencing for both hobbyist and industrial unmanned aerial vehicles.
Datasheet: Link to Datasheet
