Key Features:
- Dual-Cell Protection: Designed for 2S 7.4V (8.4V max) lithium battery packs
- Voltage Protection:
- Overcharge Protection: 4.25V – 4.35V ±0.05V
- Over-discharge Protection: 2.5V – 3.0V ±0.05V
- Current Protection:
- Maximum Continuous Current: 8A
- Peak Instantaneous Current: 15A
- Short-Circuit Protection: Auto-protection (requires charging to reset)
- Low Power Consumption: Static current <10µA for extended battery life
- Compact Design: 41mm × 16mm × 3.5mm for easy integration
- Durable & Reliable: Over 50,000 hours of operational lifespan

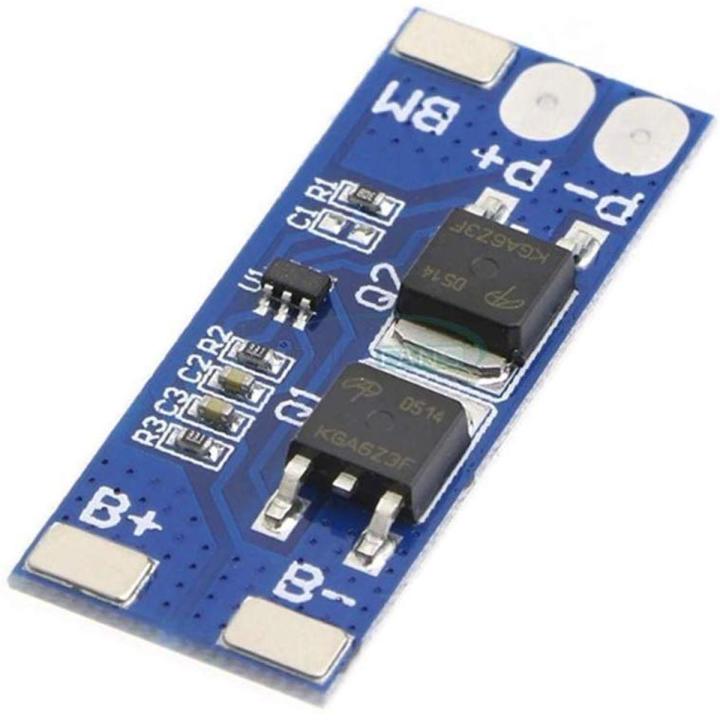

Wiring Instructions:
- B+ → Battery pack positive terminal
- B- → Battery pack negative terminal
- MB → Connection between the first and second cell
- P+ → Charge/Discharge Positive Terminal (shared)
- P- → Charge/Discharge Negative Terminal (shared)
Important Usage Notes:
🚫 Not suitable for:- LiFePO4 batteries, xenon lamps, power drills, electric fish machines, e-bikes, children's electric cars, or motors exceeding 4A (775 series).
