Speaker 8 ohm 2W

Price:

₦ 1,600.00

info@hub360.com.ng 07044715478
Speaker 8 ohm 2W
  2. Shop
  3. Speaker 8 ohm 2W
Relay 10A 5VDC
Relay 10A 5VDC
₦ 500.00
₦ 500.00

Speaker 8 ohm 2W

https://www.hub360.cc/web/image/product.template/10626/image_1920?unique=ec5faa6
(0 review)

₦ 1,600.00 1600.0 NGN ₦ 1,600.00

₦ 1,600.00

Not Available For Sale

(₦ 0.00 / Units)

This combination does not exist.

Contact Us

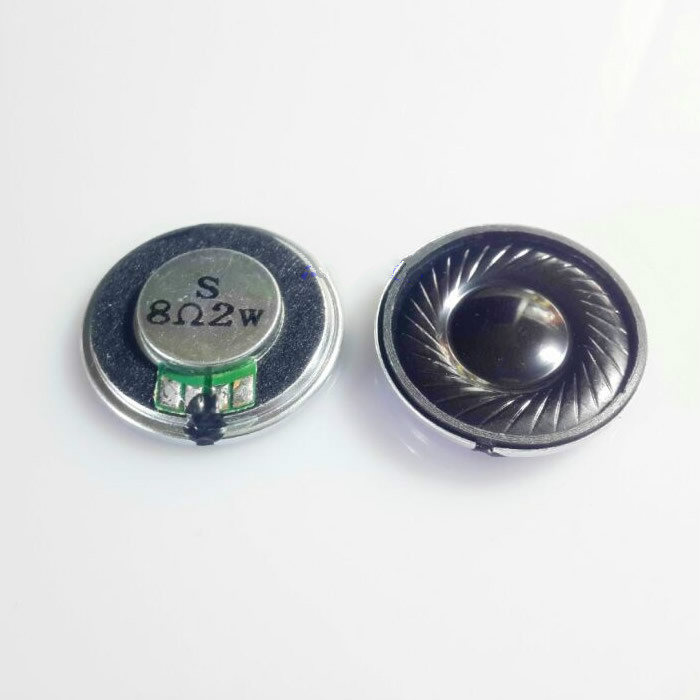

The Speaker 8 Ohm 2W is a compact and efficient audio transducer designed to deliver clear and powerful sound. Suitable for a variety of audio applications, including portable speakers, radios, intercoms, and DIY audio projects, this speaker ensures high-quality sound reproduction with minimal distortion. Key Features:
  • Impedance: 8 ohms
  • Power rating: 2W
  • Compact and lightweight design
  • High-quality sound reproduction
  • Durable construction
  • Easy to integrate into various audio projects
Technical Specifications:
  • Rated Impedance: 8Ω ±15% at 1kHz/1V
  • Rated Input Power: 2W
  • Maximum Input Power: 3W
  • Resonant Frequency (f0): 500Hz ±20% at 1V
  • Frequency Range: 0Hz - 5kHz
  • Sound Pressure Level (SPL): 85 ±3dB at 1kHz/1W/0.5m
  • Total Harmonic Distortion (THD): ≤5% at 1kHz/1W
  • Voice Coil Diameter: 13.3mm
  • Magnet Material: Nd-Fe-B (32mm × 18mm × 6mm)
  • Operating Temperature Range: -20°C to +60°C
  • Storage Temperature Range: -25°C to +70°C
  • Weight: 50g ±10%
Applications:
  • Portable speakers
  • Radios
  • Intercoms
  • DIY audio projects
  • Multimedia devices
  • Educational kits
Usage:
  1. Mount the speaker in the desired enclosure or device.
  2. Connect the speaker terminals to the audio output of your amplifier or audio source.
  3. Ensure proper polarity when connecting the speaker wires.
  4. Test the speaker with a low-volume audio signal and gradually increase the volume to the desired level.
  5. Adjust the audio settings to achieve the best sound quality for your application.
Caution:
  • Avoid exceeding the power rating to prevent damage to the speaker.
  • Handle the speaker with care to avoid damage to the cone and other components.
  • Follow the manufacturer’s guidelines for proper installation and usage.
Datasheet: For detailed technical specifications, refer to the Speaker 8 Ohm 2W Datasheet.
