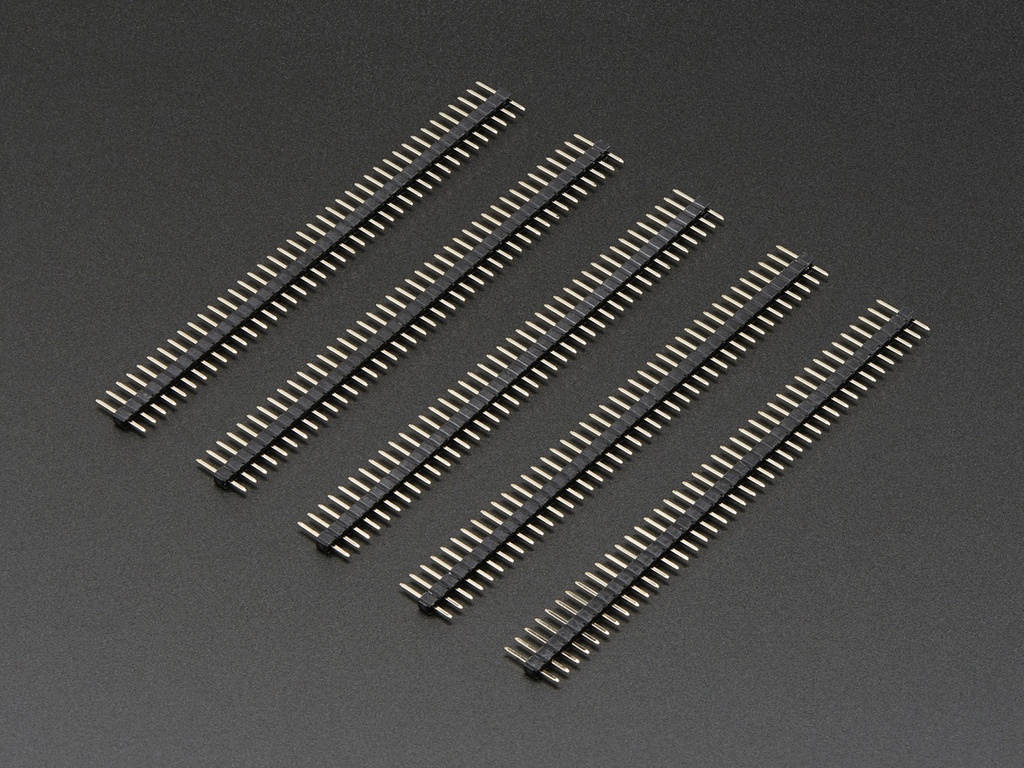

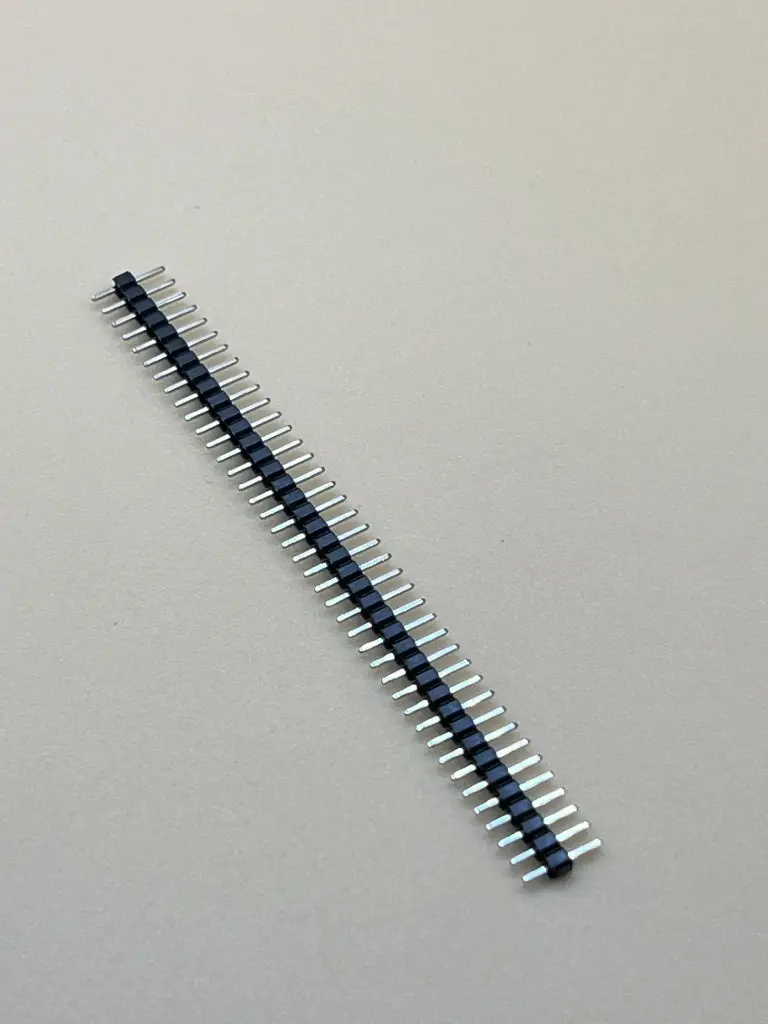

The 40-pin 2mm Single In-Line (SIL) Male Header is a precision connector designed for making electrical connections between a printed circuit board (PCB) and other components. It features a single row of 40 male pins with a 2mm pitch, providing a compact and space-efficient solution for a variety of electronic applications. This male header is often used in conjunction with a female header or connector for reliable and secure connections.
Key Features:
- 40-pin configuration with a single row layout
- 2mm pitch for compact and space-saving design
- Male header type for mating with female connectors or headers
- High durability with reliable electrical contact
- Suitable for applications where space is limited
- Typically made from high-quality materials for robust performance
- Pin Count: 40
- Pitch: 2mm
- Type: Male Header
- Row Configuration: Single row
- Material: Typically plastic with metal pins
- Contact Resistance: Typically <20mΩ
- Insulation Resistance: Typically >100MΩ
- Operating Temperature Range: -40°C to +85°C (varies by model)
- PCB-to-PCB connections
- Connecting components and modules to a PCB
- Signal and power distribution in compact electronics
- Prototyping and development
- Consumer electronics and industrial applications
- Solder the 40-pin SIL male header onto the PCB at the designated location.
- Ensure proper alignment and secure solder joints to ensure reliable connections.
- Mate the header with a compatible female header or connector as required.
- Verify the connection to ensure proper functionality and avoid misalignment or shorts.
- Handle with care to avoid bending or damaging the pins.
- Ensure the pin pitch and count match your design requirements to avoid connectivity issues.
- Follow proper soldering techniques to avoid damage to the PCB or header.
