Description

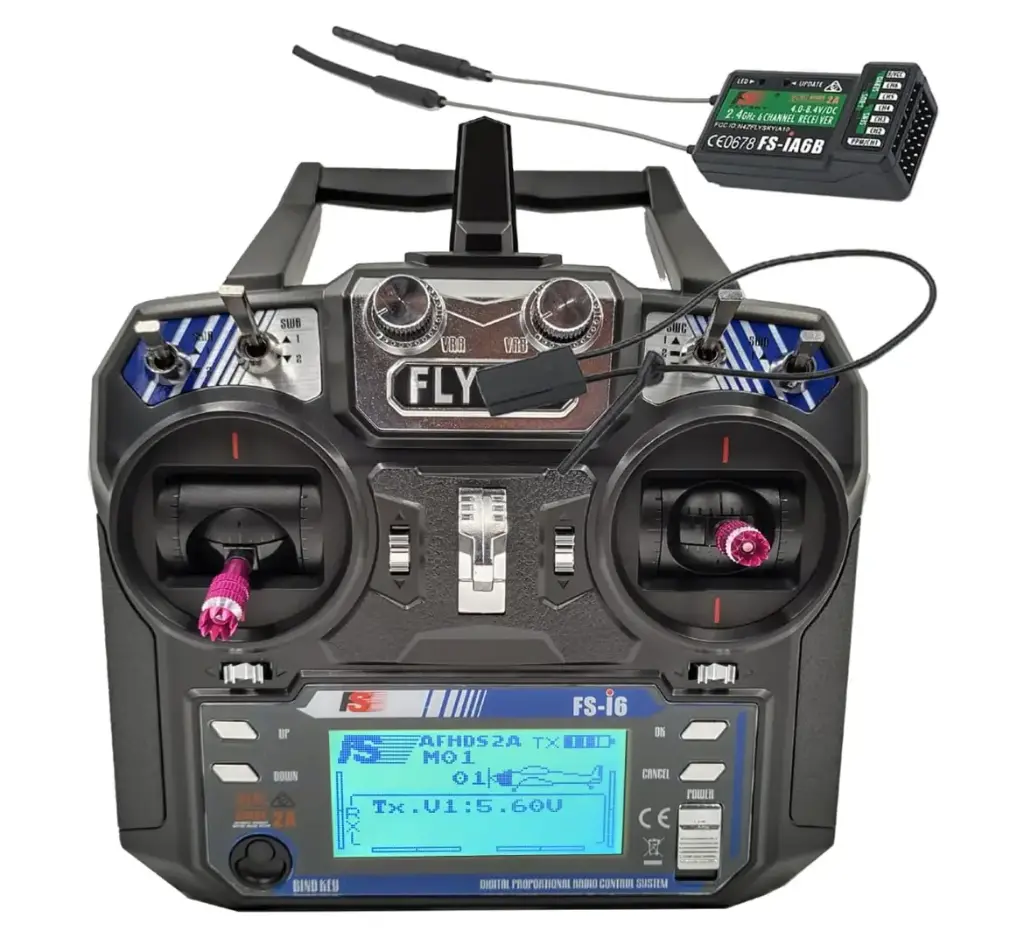

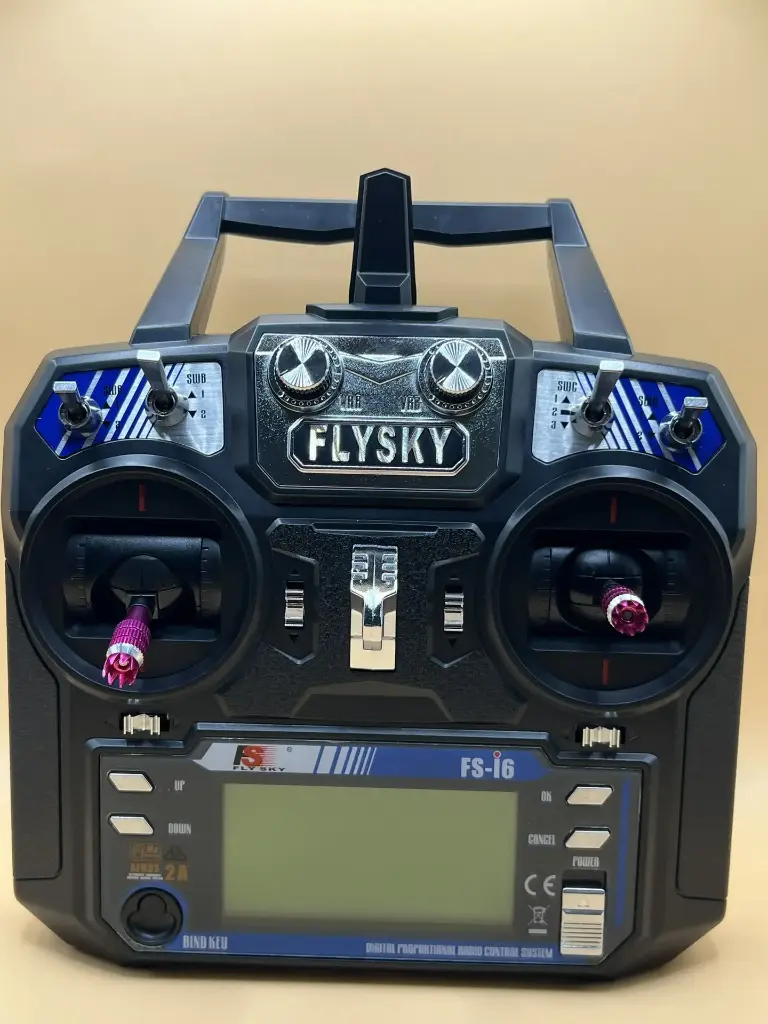

The Flysky FS-i6 is a professional-grade 6-channel RC transmitter and receiver system designed for drones, airplanes, helicopters, cars, and boats. It delivers reliable 2.4GHz AFHDS 2A transmission, ensuring stable, interference-free control for both beginners and advanced RC enthusiasts.
With its ergonomic design, intuitive menu system, and LCD display, the FS-i6 offers precise control and easy configuration, making it one of the most popular transmitters in the RC hobby community.
Key Features
- 6-Channel 2.4GHz Radio System: Stable and interference-resistant AFHDS 2A technology.
- User-Friendly Interface: Backlit LCD screen for easy programming and real-time feedback.
- Ergonomic Design: Lightweight, comfortable grip for long flying sessions.
- 20-Model Memory: Store multiple aircraft or vehicle setups.
- Dual Rate & Expo Settings: Fine-tune response for your control style.
- Fail-Safe Protection: Automatically sets channels to safe positions during signal loss.
- Telemetry Support: Real-time monitoring of battery voltage and other data (with compatible receivers).
- Wide Compatibility: Works with Flysky iA6, iA6B, and other AFHDS 2A receivers.
Specification
- Frequency Range: 2.405 – 2.475 GHz
- Number of Channels: 6
- Transmitter Power: ≤ 20dBm (100mW)
- Modulation: GFSK
- Voltage Range: 4.0 – 6.5V (4 × AA batteries or 2S LiPo)
- Display: 128 × 64 pixel backlit LCD
- Dimensions: 174mm × 89mm × 190mm
- Weight: ~392g (without batteries)

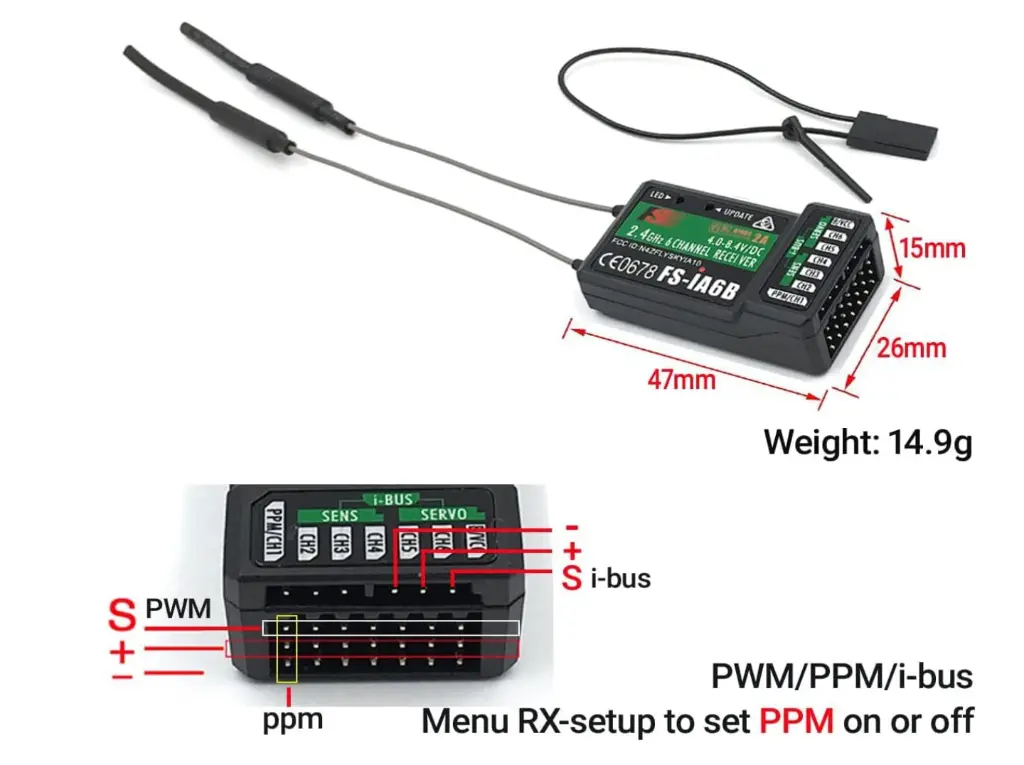

- Receiver: Flysky iA6 (6-channel, 2.4GHz AFHDS 2A)
Application
- Drones & Quadcopters – Smooth, lag-free control for flight stability.
- RC Airplanes & Helicopters – Perfect for both fixed-wing and rotary models.
- RC Cars & Boats – Ideal for ground and water-based remote control projects.
- DIY RC Projects – Custom robotics or mechatronics requiring multi-channel control.
Usage & Safety
- Use 4 AA batteries or a 2S LiPo pack (observe correct polarity).
- Bind the transmitter to the Flysky iA6 receiver before operation.
- Perform a range test before every flight or operation.
- Keep firmware updated for maximum compatibility and safety.
- Avoid dropping or exposing the transmitter to moisture.
Datasheet: For detailed technical specifications, refer to the Flysky FS-i6 Datasheet.
